Yamaha

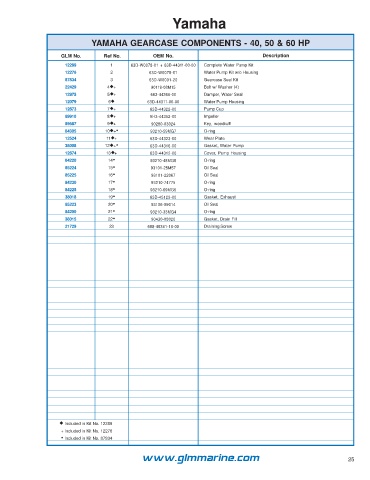

YAMAHA GEARCASE COMPONENTS - 40, 50 & 60 HP

GLM No. Ref No. OEM No. Description
12289 1 63D-W0078-01 + 63D-44311-00-00 Complete Water Pump Kit
12276 2 63D-W0078-01 Water Pump Kit w/o Housing
87834 3 63D-W0001-20 Gearcase Seal Kit
22429 4+ 90119-08M15 Bolt w/ Washer (4)
12875 5+ 663-44366-00 Damper, Water Seal
12079 6 63D-44311-00-00 Water Pump Housing
12873 7+ 63D-44322-00 Pump Cup
89910 8+ 6H3-44352-00 Impeller
89587 9+ 90280-03024 Key, woodruff
84305 10+• 93210-59MG7 O-ring
12524 11+ 63D-44323-00 Wear Plate
38008 12+• 63D-44316-00 Gasket, Water Pump
12874 13+ 63D-44312-00 Cover, Pump Housing
84220 14• 93210-48MG8 O-ring
85224 15• 93101-25M57 Oil Seal
85225 16• 93101-22067 Oil Seal
84230 17• 93210-74775 O-ring
84225 18• 93210-69MG6 O-ring
38018 19• 63D-45123-00 Gasket, Exhaust
85223 20• 93106-09014 Oil Seal
84200 21• 93210-33MG4 O-ring
38015 22• 90430-08020 Gasket, Drain Fill
21729 23 688-45341-10-00 Draining Screw

 Included in Kit No. 12289
+ Included in Kit No. 12276
• Included in Kit No. 87834

www.glmmarine.com 25
