Yamaha

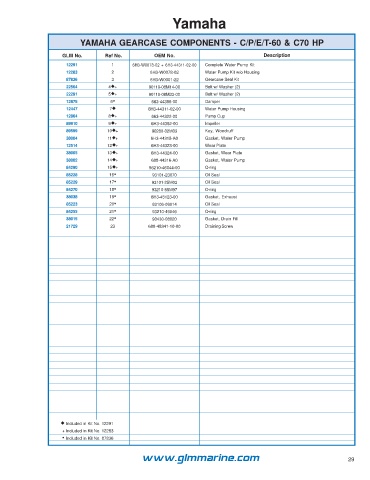

YAMAHA GEARCASE COMPONENTS - C/P/E/T-60 & C70 HP

GLM No. Ref No. OEM No. Description
12291 1 6H3-W0078-02 + 6H3-44311-02-00 Complete Water Pump Kit
12283 2 6H3-W0078-02 Water Pump Kit w/o Housing
87836 3 6H3-W0001-22 Gearcase Seal Kit
22504 4+ 90119-08M14-00 Bolt w/ Washer (2)
22291 5+ 90119-08M33-00 Bolt w/ Washer (2)
12875 6• 663-44366-00 Damper
12447 7 6H3-44311-02-00 Water Pump Housing
12864 8+ 663-44322-00 Pump Cup
89910 9+ 6H3-44352-00 Impeller
89599 10+ 90280-02M03 Key, Woodruff
38004 11+ 6H3-44315-A0 Gasket, Water Pump
12514 12+ 6H3-44323-00 Wear Plate
38005 13+ 6H3-44324-00 Gasket, Wear Plate
38002 14+ 688-44316-A0 Gasket, Water Pump
84290 15+ 93210-46044-00 O-ring
85228 16• 93101-23070 Oil Seal
85229 17• 93101-25M03 Oil Seal
84270 18• 93210-85M97 O-ring
38038 19• 6H3-45123-00 Gasket, Exhaust
85223 20• 93106-09014 Oil Seal
84255 21• 93210-49046 O-ring
38015 22• 90430-08020 Gasket, Drain Fill
21729 23 688-45341-10-00 Draining Screw

 Included in Kit No. 12291
+ Included in Kit No. 12283
• Included in Kit No. 87836

www.glmmarine.com 29
