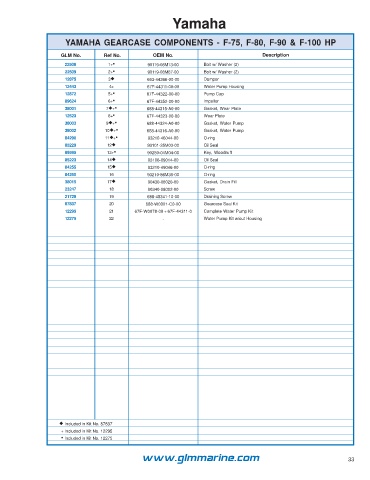

YAMAHA GEARCASE COMPONENTS - F-75, F-80, F-90 & F-100 HP

GLM No. Ref No. OEM No. Description
22508 1+• 90119-08M13-00 Bolt w/ Washer (2)
22509 2+• 90119-08M87-00 Bolt w/ Washer (2)
12875 3 663-44366-00-00 Damper
12443 4+ 67F-44311-00-00 Water Pump Housing
12872 5+• 67F-44322-00-00 Pump Cup
89624 6+• 67F-44352-00-00 Impeller
38001 7+• 688-44315-A0-00 Gasket, Wear Plate
12523 8+• 67F-44323-00-00 Wear Plate
38003 9+• 688-44324-A0-00 Gasket, Water Pump
38002 10+• 688-44316-A0-00 Gasket, Water Pump
84290 11+• 93210-46044-00 O-ring
85229 12 93101-25M03-00 Oil Seal
89595 13+• 90280-04M04-00 Key, Woodruff
85223 14 93106-09014-00 Oil Seal
84255 15 93210-49046-00 O-ring
84250 16 93210-86M39-00 O-ring
38015 17 90430-08020-00 Gasket, Drain Fill
23247 18 90340-08002-00 Screw
21729 19 688-45341-10-00 Draining Screw
87837 20 688-W0001-C0-00 Gearcase Seal Kit
12295 21 67F-W0078-00 + 67F-44311-0 Complete Water Pump Kit
12275 22 - Water Pump Kit w/out Housing

 Included in Kit No. 87837
+ Included in Kit No. 12295
• Included in Kit No. 12275
