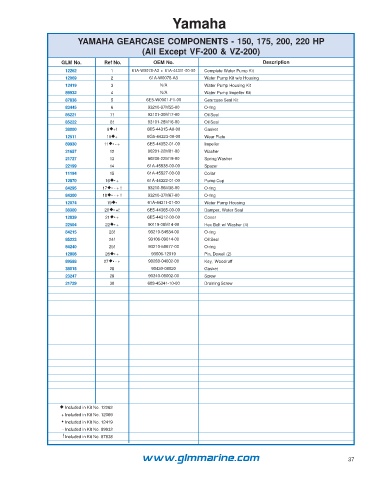

YAMAHA GEARCASE COMPONENTS - 150, 175, 200, 220 HP
(All Except VF-200 & VZ-200)
GLM No. Ref No. OEM No. Description
12262 1 61A-W0078-A3 + 61A-44311-00-00 Complete Water Pump Kit
12069 2 61A-W0078-A3 Water Pump Kit w/o Housing
12419 3 N/A Water Pump Housing Kit
89932 4 N/A Water Pump Impeller Kit
87838 5 6E5-W0001-F1-00 Gearcase Seal Kit
83445 6 93210-97M55-00 O-ring
85221 7! 93101-30M17-00 Oil Seal
85222 8! 93101-28M16-00 Oil Seal
38000 9+! 6E5-44315-A0-00 Gasket
12511 10+ 6G5-44323-00-00 Wear Plate
89930 11• - + 6E5-44352-01-00 Impeller
21657 12 90201-22M01-00 Washer
21727 13 90206-22M19-00 Spring Washer
22199 14 61A-45538-00-00 Spacer
11194 15 61A-45527-00-00 Collar
12870 16• + 61A-44322-01-00 Pump Cup
84295 17• - + ! 93210-86M38-00 O-ring
84300 18• - + ! 93210-37M67-00 O-ring
12074 19• 61A-44311-01-00 Water Pump Housing
38300 20• +! 6E5-44365-00-00 Damper, Water Seal
12839 21• + 6E5-44312-00-00 Cover
22504 22• + 90119-08M14-00 Hex Bolt w/ Washer (4)
84215 23! 93210-54534-00 O-ring
85223 24! 93106-09014-00 Oil Seal
84240 25! 93210-58677-00 O-ring
12808 26• + 93606-12019 Pin, Dowell (2)
89588 27• - + 90280-04002-00 Key, Woodruff
38015 28 90430-08020 Gasket
23247 29 90340-08002-00 Screw
21729 30 688-45341-10-00 Draining Screw

 Included in Kit No. 12262
+ Included in Kit No. 12069
• Included in Kit No. 12419
- Included in Kit No. 89932
! Included in Kit No. 87838
