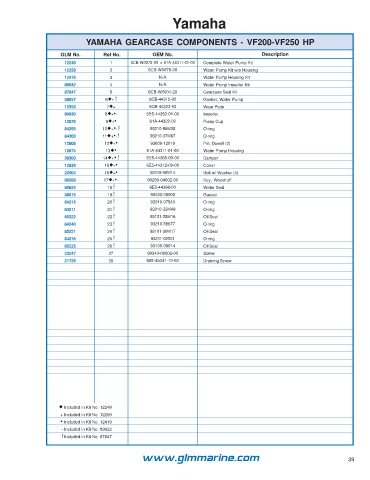

YAMAHA GEARCASE COMPONENTS - VF200-VF250 HP

GLM No. Ref No. OEM No. Description
12249 1 6CB-W0078-00 + 61A-44311-01-00 Complete Water Pump Kit
12259 2 6CB-W0078-00 Water Pump Kit w/o Housing
12419 3 N/A Water Pump Housing Kit
89932 4 N/A Water Pump Impeller Kit
87847 5 6CB-W0001-20 Gearcase Seal Kit
38057 6+ ! 6CB-44315-00 Gasket, Water Pump
12553 7+ 6CB-44323-00 Wear Plate
89930 8+•- 6E5-44352-01-00 Impeller
12870 9+• 61A-44322-02 Pump Cup
84295 10+•- ! 93210-86M38 O-ring
84300 11+•- ! 93210-37M67 O-ring
12808 12+• 93606-12019 Pin, Dowell (2)
12074 13• 61A-44311-01-00 Water Pump Housing
38300 14+• ! 6E5-44365-00-00 Damper
12839 15+• 6E5-44312-00-00 Cover
22504 16+• 90119-08M14 Bolt w/ Washer (4)
89588 17+•- 90280-04002-00 Key, Woodruff
85624 18 ! 6E5-44366-00 Water Seal
38015 19 ! 90430-08003 Gasket
84213 20 ! 93210-07540 O-ring
84211 21 ! 93210-33M49 O-ring
85222 22 ! 93101-28M16 Oil Seal
84240 23 ! 93210-58677 O-ring
85221 24 ! 93101-30M17 Oil Seal
84216 25 ! 93211-02001 O-ring
85223 26 ! 93106-09014 Oil Seal
23247 27 90340-08002-00 Screw
21729 28 688-45341-10-00 Draining Screw

 Included in Kit No. 12249
+ Included in Kit No. 12259
• Included in Kit No. 12419
- Included in Kit No. 89932
! Included in Kit No. 87847

www.glmmarine.com 39
