Yamaha

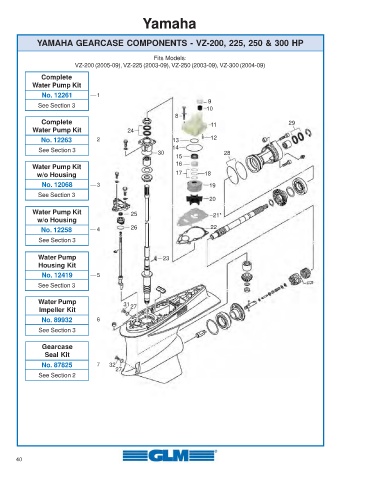

YAMAHA GEARCASE COMPONENTS - VZ-200, 225, 250 & 300 HP

Fits Models:
VZ-200 (2005-09), VZ-225 (2003-09), VZ-250 (2003-09), VZ-300 (2004-09)
Complete
Water Pump Kit
No. 12261 1
9
See Section 3
10
8
Complete 11 29
Water Pump Kit 24
No. 12263 2 13 12
See Section 3 30 14 28
15
Water Pump Kit 16
w/o Housing 17 18
No. 12068 3 19

See Section 3
20
Water Pump Kit 25 21*
w/o Housing
No. 12258 4 26 22
See Section 3

Water Pump 23
Housing Kit
No. 12419 5
See Section 3

Water Pump 31
Impeller Kit 27
No. 89932 6
See Section 3

Gearcase
Seal Kit
No. 87825 7 32
27
See Section 2

40
