Yamaha

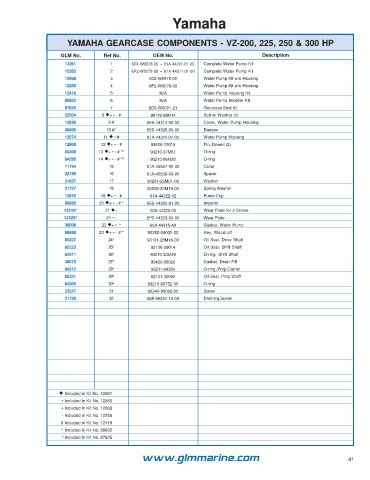

YAMAHA GEARCASE COMPONENTS - VZ-200, 225, 250 & 300 HP

GLM No. Ref No. OEM No. Description
12261 1 60X-W0078-00 + 61A-44311-01-00 Complete Water Pump Kit
12263 2 6P2-W0078-00 + 61A-44311-01-00 Complete Water Pump Kit
12068 3 60X-W0078-00 Water Pump Kit w/o Housing
12258 4 6P2-W0078-00 Water Pump Kit w/o Housing
12419 5 N/A Water Pump Housing Kit
89932 6 N/A Water Pump Impeller Kit
87825 7 6D0-W0001-21 Gearcase Seal Kit
22504 8 + • - # 90119-08M14 Bolt w/ Washer (4)
12839 9 # 6E5-44312-00-00 Cover, Water Pump Housing
38300 10 #^ 6E5-44365-00-00 Damper
12074 11  • # 61A-44311-01-00 Water Pump Housing
12808 12 + • - # 93606-12019 Pin, Dowell (2)
84300 13 + • - # *^ 93210-37M67 O-ring
84295 14 + • - # *^ 93210-86M38 O-ring
11194 15 61A-45527-00-00 Collar
22199 16 61A-45538-00-00 Spacer
21657 17 90201-22M01-00 Washer
21727 18 90206-22M19-00 Spring Washer
12870 19 + • - # 61A-44322-02 Pump Cup
89930 20 + • - # * 6E5-44352-01-00 Impeller
12519* 21 + 60X-44323-00 Wear Plate for 2-Stroke
12529* 21 • - 6P2-44323-00-00 Wear Plate
38006 22 + • -^ 60X-44315-A0 Gasket, Water Pump
89588 23 + • - # * 90280-04002-00 Key, Woodruff
85222 24^ 93101-28M16-00 Oil Seal, Drive Shaft
85223 25^ 93106-09014 Oil Seal, Shift Shaft
84211 26^ 93210-33M49 O-ring, Shift Shaft
38015 27^ 90430-08020 Gasket, Drain Fill
84212 28^ 93211-04384 O-ring, Prop Carrier
85221 29^ 93101-30002 Oil Seal, Prop Shaft
84205 30^ 93210-65752-00 O-ring
23247 31 90340-08002-00 Screw
21729 32 688-45341-10-00 Draining Screw

 Included in Kit No. 12261
• Included in Kit No. 12263
+ Included in Kit No. 12068
- Included in Kit No. 12258
# Included in Kit No. 12419
* Included in Kit No. 89932
^ Included in Kit No. 87825

www.glmmarine.com 41
