Yamaha

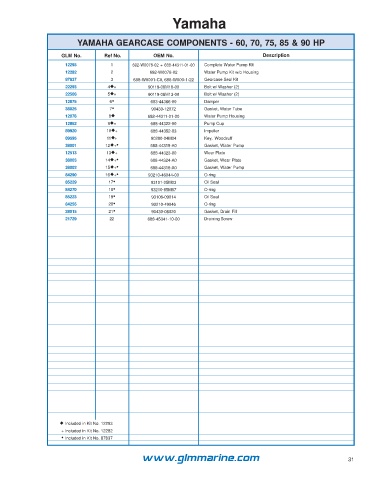

YAMAHA GEARCASE COMPONENTS - 60, 70, 75, 85 & 90 HP

GLM No. Ref No. OEM No. Description
12293 1 692-W0078-02 + 688-44311-01-00 Complete Water Pump Kit
12282 2 692-W0078-02 Water Pump Kit w/o Housing
87837 3 688-W0001-C0, 688-W000-1-22 Gearcase Seal Kit
22293 4+ 90119-08M16-00 Bolt w/ Washer (2)
22508 5+ 90119-08M13-00 Bolt w/ Washer (2)
12875 6• 663-44366-00 Damper
38025 7• 90430-12072 Gasket, Water Tube
12078 8 688-44311-01-00 Water Pump Housing
12862 9+ 688-44322-00 Pump Cup
89920 10+ 688-44352-03 Impeller
89595 11+ 90280-04M04 Key, Woodruff
38001 12+• 688-44315-A0 Gasket, Water Pump
12513 13+ 688-44323-00 Wear Plate
38003 14+• 688-44324-A0 Gasket, Wear Plate
38002 15+• 688-44316-A0 Gasket, Water Pump
84290 16+• 93210-46044-00 O-ring
85229 17• 93101-25M03 Oil Seal
84270 18• 93210-85M97 O-ring
85223 19• 93106-09014 Oil Seal
84255 20• 93210-49046 O-ring
38015 21• 90430-08020 Gasket, Drain Fill
21729 22 688-45341-10-00 Draining Screw

 Included in Kit No. 12293
+ Included in Kit No. 12282
• Included in Kit No. 87837

www.glmmarine.com 31
