Yamaha

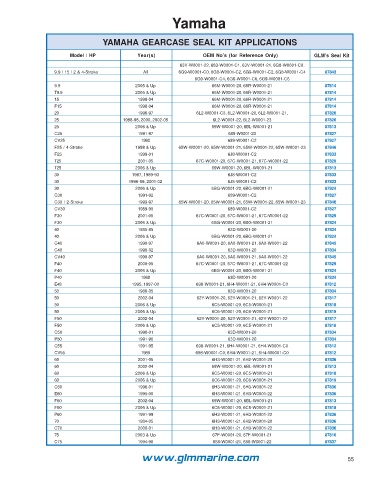

YAMAHA GEARCASE SEAL KIT APPLICATIONS
Model / HP Year(s) OEM No’s (for Reference Only) GLM’s Seal Kit
63V-W0001-22, 683-W0001-C1, 63V-W0001-21, 6G8-W0001-C0,
9.9 / 15 / 2 & 4-Stroke All 6G9-W0001-C0, 6G8-W0001-C2, 6G9-W0001-C2, 6G8-W0001-C4 87843
6G9-W0001-C4, 6G8-W0001-C6, 6G9-W0001-C6
9.9 2005 & Up 66M-W0001-20, 66R-W0001-21 87814
T9.9 2005 & Up 66M-W0001-20, 66R-W0001-21 87814
15 1998-04 66M-W0001-20, 66R-W0001-21 87814
F15 1998-04 66M-W0001-20, 66R-W0001-21 87814
20 1996-97 6L2-W0001-C3, 6L2-W0001-20, 6L2-W0001-21, 87826
25 1988-98, 2000, 2002-05 6L2-W0001-22, 6L2-W0001-23 87826
25 2006 & Up 69W-W0001-20, 6BL-W0001-21 87813
C25 1991-97 689-W0001-23 87827
CV25 1990 689-W0001-C2 87827
F25 / 4-Stroke 1998 & Up 65W-W0001-20, 65W-W0001-21, 65W-W0001-22, 65W-W0001-23 87846
F25 1999-01 6J8-W0001-C2 87833
T25 2001-05 67C-W0001-20, 67C-W0001-21, 67C-W0001-22 87829
T25 2006 & Up 69W-W0001-20, 6BL-W0001-21 87813
30 1987, 1989-93 6J8-W0001-C2 87833
30 1996-99, 2001-02 6J8-W0001-C2 87833
30 2006 & Up 6BG-W0001-20, 6BG-W0001-21 87824
C30 1991-92 689-W0001-C2 87827
C30 / 2-Stroke 1993-97 65W-W0001-20, 65W-W0001-21, 65W-W0001-22, 65W-W0001-23 87846
CV30 1989-90 689-W0001-C2 87827
F30 2001-05 67C-W0001-20, 67C-W0001-21, 67C-W0001-22 87829
F30 2006 & Up 6BG-W0001-20, 6BG-W0001-21 87824
40 1985-85 63D-W0001-20 87834
40 2006 & Up 6BG-W0001-20, 6BG-W0001-21 87824
C40 1990-97 6A0-W0001-20, 6A0-W0001-21, 6A0-W0001-22 87845
C40 1998-02 63D-W0001-20 87834
CV40 1990-97 6A0-W0001-20, 6A0-W0001-21, 6A0-W0001-22 87845
F40 2000-05 67C-W0001-20, 67C-W0001-21, 67C-W0001-22 87829
F40 2006 & Up 6BG-W0001-20, 6BG-W0001-21 87824
P40 1998 63D-W0001-20 87834
E48 1995, 1997-00 698-W0001-21, 6H4-W0001-21, 6H4-W0001-C0 87812
50 1986-05 63D-W0001-20 87834
50 2002-04 62Y-W0001-20, 62Y-W0001-21, 62Y-W0001-22 87817
50 2006 & Up 6C5-W0001-20, 6C5-W0001-21 87818
50 2006 & Up 6C6-W0001-20, 6C6-W0001-21 87819
F50 2002-04 62Y-W0001-20, 62Y-W0001-21, 62Y-W0001-22 87817
F50 2006 & Up 6C5-W0001-20, 6C5-W0001-21 87818
C50 1998-01 63D-W0001-20 87834
P50 1991-96 63D-W0001-20 87834
C55 1991-95 698-W0001-21, 6H4-W0001-21, 6H4-W0001-C0 87812
CV55 1989 698-W0001-C0, 6H4-W0001-21, 6H4-W0001-C0 87812
60 2001-05 6H3-W0001-21, 6H2-W0001-20 87836
60 2002-04 69W-W0001-20, 6BL-W0001-21 87813
60 2006 & Up 6C5-W0001-20, 6C5-W0001-21 87818
60 2006 & Up 6C6-W0001-20, 6C6-W0001-21 87819
C60 1996-01 6H3-W0001-21, 6H3-W0001-22 87836
E60 1995-00 6H3-W0001-21, 6H3-W0001-22 87836
F60 2002-04 69W-W0001-20, 6BL-W0001-21 87813
F60 2006 & Up 6C5-W0001-20, 6C5-W0001-21 87818
P60 1991-99 6H3-W0001-21, 6H3-W0001-22 87836
70 1984-05 6H3-W0001-21, 6H2-W0001-20 87836
C70 2000-01 6H3-W0001-21, 6H3-W0001-22 87836
75 2003 & Up 67F-W0001-20, 67F-W0001-21 87816
C75 1994-98 688-W0001-21, 688-W0001-22 87837
www.glmmarine.com 55
