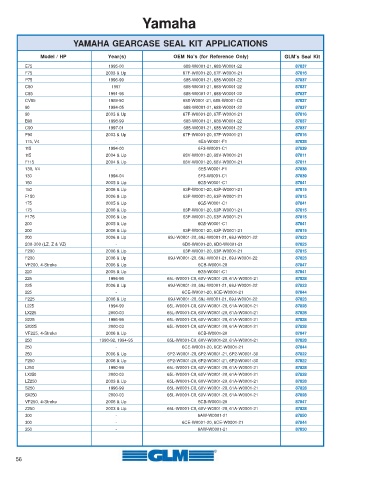

Page 56 - Yamaha_Catalog_Flipbook

Yamaha

YAMAHA GEARCASE SEAL KIT APPLICATIONS

Model / HP Year(s) OEM No’s (for Reference Only) GLM’s Seal Kit
E75 1995-00 688-W0001-21, 688-W0001-22 87837
F75 2003 & Up 67F-W0001-20, 67F-W0001-21 87816
P75 1996-99 688-W0001-21, 688-W0001-22 87837
C80 1997 688-W0001-21, 688-W0001-22 87837
C85 1991-96 688-W0001-21, 688-W0001-22 87837
CV85 1989-90 688-W0001-21, 688-W0001-C0 87837
90 1984-05 688-W0001-21, 688-W0001-22 87837
90 2003 & Up 67F-W0001-20, 67F-W0001-21 87816
B90 1998-99 688-W0001-21, 688-W0001-22 87837
C90 1997-01 688-W0001-21, 688-W0001-22 87837
F90 2003 & Up 67F-W0001-20, 67F-W0001-21 87816
115, V4 - 6E5-W0001-F1 87838
115 1994-00 6F3-W0001-C1 87839
115 2004 & Up 68V-W0001-20, 68V-W0001-21 87811
F115 2004 & Up 68V-W0001-20, 68V-W0001-21 87811
130, V4 - 6E5-W0001-F1 87838
130 1994-04 6F3-W0001-C1 87839
150 2005 & Up 6G5-W0001-C1 87841
150 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
F150 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
175 2005 & Up 6G5-W0001-C1 87841
175 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
F175 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
200 2005 & Up 6G5-W0001-C1 87841
200 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
200 2006 & Up 69J-W0001-20, 69J-W0001-21, 69J-W0001-22 87823
200-300 (LZ, Z & VZ) - 6D0-W0001-20, 6D0-W0001-21 87825
F200 2006 & Up 63P-W0001-20, 63P-W0001-21 87815
F200 2006 & Up 69J-W0001-20, 69J-W0001-21, 69J-W0001-22 87823
VF200, 4-Stroke 2006 & Up 6CB-W0001-20 87847
220 2005 & Up 6G5-W0001-C1 87841
225 1994-96 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
225 2006 & Up 69J-W0001-20, 69J-W0001-21, 69J-W0001-22 87823
225 - 6CE-W0001-20, 6CE-W0001-21 87844
F225 2006 & Up 69J-W0001-20, 69J-W0001-21, 69J-W0001-22 87823
L225 1994-99 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
LX225 2000-03 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
S225 1996-99 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
SX225 2000-03 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
VF225, 4-Stroke 2006 & Up 6CB-W0001-20 87847
250 1990-92, 1994-95 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
250 - 6CE-W0001-20, 6CE-W0001-21 87844
250 2006 & Up 6P2-W0001-20, 6P2-W0001-21, 6P2-W0001-30 87822
F250 2006 & Up 6P2-W0001-20, 6P2-W0001-21, 6P2-W0001-30 87822
L250 1990-99 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
LX250 2000-03 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
LZ250 2003 & Up 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
S250 1996-99 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
SX250 2000-03 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
VF250, 4-Stroke 2006 & Up 6CB-W0001-20 87847
Z250 2003 & Up 65L-W0001-C0, 60V-W0001-20, 61A-W0001-21 87828
300 - 6AW-W0001-21 87850
300 - 6CE-W0001-20, 6CE-W0001-21 87844
350 - 6AW-W0001-21 87850
