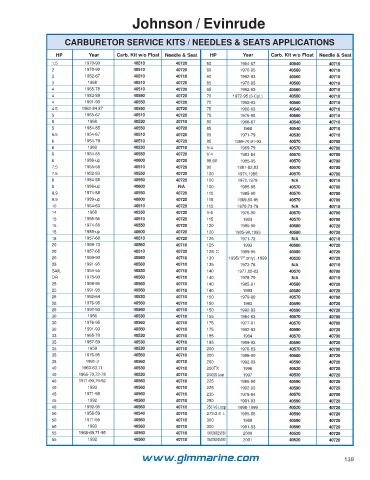

Johnson / Evinrude

CARBURETOR SERVICE KITS / NEEDLES & SEATS APPLICATIONS

HP Year Carb. Kit w/o Float Needle & Seat HP Year Carb. Kit w/o Float Needle & Seat
1.5 1970-90 40510 40720 60 1964-67 40540 40710
2 1970-90 40510 40720 60 1970-95 40560 40710
3 1952-67 40510 40710 60 1992-93 40560 40710
3 1968 40510 40720 65 1972-95 40560 40710
4 1965-78 40510 40720 65 1992-93 40560 40710
4 1983-89 40550 40720 70 1972-95 (3-Cyl.) 40560 40710
4 1991-93 40550 40720 70 1992-93 40560 40710
4.5 1982-84,87 40550 40720 75 1960-63 40540 40710
5 1965-67 40510 40720 75 1975-88 40560 40710
5 1968 40530 40710 80 1966-67 40540 40710
5 1984-85 40550 40720 85 1968 40540 40710
5.5 1954-67 40510 40720 85 1971-79 40530 40710
6 1954-79 40510 40720 85 1969-70,91-93 40570 40700
6 1968 40530 40710 V-4 1969-79 40570 40700
6 1984-85 40550 40720 V-4 1983-84 40570 40700
6 1986-up 40600 40720 88,90 1985-95 40570 40700
7.5 1955-58 40510 40720 90 1981-82,83 40570 40700
7.5 1982-83 40550 40720 100 1971,1980 40570 40700
8 1984-85 40550 40720 100 1972,1979 N/A 40710
8 1986-up 40600 N/A 100 1985-95 40570 40700
9.9 1974-88 40550 40720 110 1985-90 40570 40700
9.9 1989-up 40600 40720 115 1969,80-95 40570 40700
10 1954-63 40510 40720 115 1970,73-79 N/A 40710
14 1968 40550 40720 V-6 1976-90 40570 40700
15 1955-56 40510 40720 115 1983 40570 40700
15 1974-88 40550 40720 120 1985-90 40580 40720
15 1989-up 40600 40720 120 1985-90,1993 40580 40720
18 1957-68 40510 40720 125 1971-72 N/A 40710
20 1969-73 40560 40710 125 1993 40580 40720
20 1957-68 40510 40720 125 C 1989-95 40580 40720
20 1969-90 40560 40710 130 1995(“P” only) -1999 40520 40720
25 1991-95 40560 40710 135 1973-76 N/A 40710
SAIL 1954-55 40530 40710 140 1977,80-83 40570 40700
DR 1978-90 40560 40710 140 1978-79 N/A 40710
25 1969-95 40560 40710 140 1985-91 40580 40720
25 1991-95 40560 40710 140 1993 40580 40720
28 1962-64 40530 40710 150 1979-90 40570 40700
28 1976-95 40560 40710 150 1993 40590 40720
28 1992-93 40560 40710 150 1992-93 40590 40720
30 1956 40530 40710 155 1984-93 40570 40700
30 1976-95 40560 40710 175 1977-91 40570 40700
30 1991-93 40560 40710 175 1992-93 40590 40720
33 1965-70 40530 40710 185 1984 40570 40700
35 1957-59 40530 40710 185 1989-93 40590 40720
35 1959 40530 40710 200 1976-83 40570 40700
35 1976-95 40560 40710 200 1986-90 40580 40720
35 1991-3 40560 40710 200 1992-93 40590 40720
40 1960-63,71 40530 40710 200TX 1996 40520 40720
40 1965-70,72-78 40530 40710 200/225 Loop 1997 40520 40720
40 1971-90,79-92 40560 40710 225 1986-90 40590 40720
40 1993 40560 40710 225 1992-93 40590 40720
45 1971-95 40560 40710 235 1978-84 40570 40700
45 1992 40560 40710 250 1991-93 40590 40720
48 1992-95 40560 40710 250 V6 Loop 1998-1999 40520 40720
50 1958-59 40540 40710 275\3.6 L 1985-88 40590 40720
50 1971-95 40560 40710 300 1988 40590 40720
50 1993 40560 40710 300 1991-93 40590 40720
55 1968-69,71-95 40560 40710 130/200/225/250 2000 40520 40720
55 1992 40560 40710 135/200/225/250 2001 40520 40720
