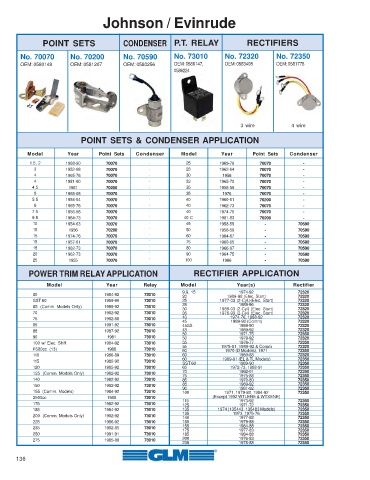

Page 136 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

POINT SETS CONDENSER P.T. RELAY RECTIFIERS

No. 70070 No. 70200 No. 70590 No. 73010 No. 72320 No. 72350
OEM: 0580148 OEM: 0581207 OEM: 0580256 OEM: 0586147, OEM: 0583408 OEM: 0581778
0586224

3 wire 4 wire

POINT SETS & CONDENSER APPLICATION

Model Year Point Sets Condenser Model Year Point Sets Condenser
1.5, 2 1968-90 70070 - 25 1969-76 70070 -
3 1952-68 70070 - 28 1962-64 70070 -
4 1965-76 70070 - 30 1956 70070 -
4 1981-90 70070 - 33 1965-70 70070 -
4.5 1981 70200 - 35 1958-59 70070 -
5 1965-68 70070 - 35 1976 70070 -
5.5 1954-64 70070 - 40 1960-61 70200 -
6 1965-76 70070 - 40 1962-73 70070 -
7.5 1956-58 70070 - 40 1974-76 70070 -
9.5 1964-73 70070 - 40 C 1981-83 70200 -
10 1954-63 70070 - 45 1958-59 - 70590
15 1956 70200 - 50 1958-59 - 70590
15 1974-76 70070 - 60 1964-67 - 70590
18 1957-61 70070 - 75 1960-65 - 70590
18 1962-73 70070 - 80 1966-67 - 70590
20 1962-73 70070 - 90 1964-75 - 70590
25 1955 70070 - 100 1966 - 70590

POWER TRIM RELAY APPLICATION RECTIFIER APPLICATION
Model Year Relay Model Year(s) Rectifier
9.9, 15 1974-92 72320
80 1984-92 73010 20 1989-98 (Elec. Start) 72320
SST 60 1989-90 73010 25 1977-03 (2-Cyl.)(Elec. Start) 72320
1989-96
85 (Comm. Models Only) 1985-92 73010 28 1989-03 (2-Cyl) (Elec. Start) 72320
30
72320
70 1982-92 73010 35 1976-93 (2-Cyl) (Elec. Start) 72320
75 1982-88 73010 40 1974-76, 1988-92 72320
45
72320
1989-92 (Comm)
85 1991-92 73010 45SS 1989-90 72320
88 1987-92 73010 48 1989-92 72320
72350
50
1971-75
90 1981 73010 50 1979-92 72320
100 w/ Elec. Shift 1984-92 73010 55 1976-77 72350
F600cc (13) 1988 73010 55 1978-81, 1980-92 & Comm 72320
60
1970 (D Models), 1971
72350
110 1986-89 73010 60 1980-88 72320
115 1982-92 73010 60 1989-91 (EL & TL Models) 72350
SST 60
1989-90
72350
120 1985-92 73010 65 1972-73, 1988-91 72350
125 (Comm. Models Only) 1982-92 73010 70 1992-01 72350
72350
1975-88
75
140 1982-92 73010 85 1970-80 72350
150 1982-92 73010 88 1989-92 72350
1981-92
72350
90
155 (Comm. Models) 1984-92 73010 100 1971, 1979-80, 1984-92 72350
2500cc 1988 73010 (Except 1992 WTLENE & WTXENE)
175 1982-92 73010 115 1973-92 72350
125
1971-72
72350
185 1984-92 73010 135 1974 (135443, 135483 Models) 72350
200 (Comm. Models Only) 1982-92 73010 135 1973, 1975-76 72350
72350
140
1977-88
225 1986-92 73010 150 1979-88 72350
235 1982-85 73010 155 1984-88 72350
1977-83
175
72350
250 1991-91 73010 185 1984-88 72350
275 1985-88 73010 200 1976-83 72350
235 1978-88 72350
136
