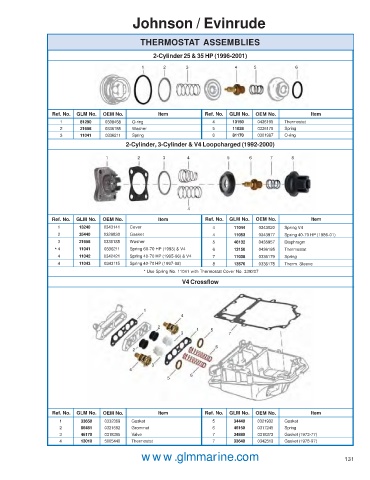

Johnson / Evinrude

THERMOSTAT ASSEMBLIES

2-Cylinder 25 & 35 HP (1996-2001)
1 2 3 4 5 6

Ref. No. GLM No. OEM No. Item Ref. No. GLM No. OEM No. Item
1 81290 0308458 O-ring 4 13150 0436195 Thermostat
2 21658 0336185 Washer 5 11038 0336179 Spring
3 11041 0336211 Spring 6 81170 0301967 O-ring
2-Cylinder, 3-Cylinder & V4 Loopcharged (1992-2000)

1 2 3 4 5 6 7 8

4
Ref. No. GLM No. OEM No. Item Ref. No. GLM No. OEM No. Item
1 13240 0343141 Cover 4 11044 0343020 Spring V4
2 35440 0329830 Gasket 4 11053 0343977 Spring 40-70 HP (1986-01)
3 21658 0336185 Washer 5 46132 0435957 Diaphragm
* 4 11041 0336211 Spring 60-70 HP (1993) & V4 6 13150 0436195 Thermostat
4 11042 0342421 Spring 40-70 HP (1995-96) & V4 7 11038 0336179 Spring
4 11043 0343115 Spring 40-70 HP (1997-98) 8 13570 0336178 Therm. Sleeve
* Use Spring No. 11041 with Thermostat Cover No. 339207
V4 Crossflow

1
4
2 1 5
3 7

6
2

3
4
6
5

Ref. No. GLM No. OEM No. Item Ref. No. GLM No. OEM No. Item
1 33650 0332369 Gasket 5 34440 0321932 Gasket
2 86481 0321692 Grommet 6 46150 0317245 Spring
3 46170 0318395 Valve 7 34880 0318373 Gasket (1973-77)
4 13010 5005440 Thermostat 7 33640 0342513 Gasket (1978-97)

www.glmmarine.com 131
