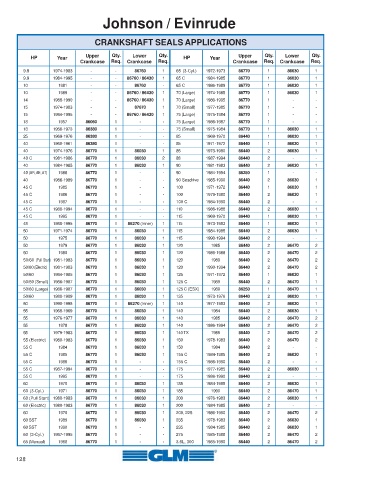

Johnson / Evinrude

CRANKSHAFT SEALS APPLICATIONS

HP Year Upper Qty. Lower Qty. HP Year Upper Qty. Lower Qty.
Crankcase Req. Crankcase Req. Crankcase Req. Crankcase Req.
9.9 1974-1983 - - 86760 1 65 (3-Cyl.) 1972-1973 86770 1 86030 1
9.9 1984-1995 - - 86760 / 86430 1 65 C 1984-1985 86770 1 86030 1
10 1981 - - 86760 - 65 C 1986-1989 86770 1 86030 1
10 1989 - - 86760 / 86430 1 70 (Large) 1974-1985 86770 1 86030 1
14 1988-1990 - - 86760 / 86430 1 70 (Large) 1986-1995 86770 1 - -
15 1974-1983 - - 87670 1 70 (Small) 1977-1985 86770 1 - -
15 1984-1995 - - 86760 / 86430 1 75 (Large) 1975-1984 86770 1 - -
18 1957 86060 1 - - 75 (Large) 1986-1987 86770 1 - -
18 1958-1973 86380 1 - - 75 (Small) 1975-1984 86770 1 86030 1
25 1969-1976 86380 1 - - 85 1969-1970 86440 1 86030 1
40 1960-1961 86380 1 - - 85 1971-1972 86440 1 86030 1
40 1974-1976 86770 1 86030 1 85 1973-1980 86440 2 86030 1
40 C 1981-1986 86770 1 86030 2 88 1987-1994 86440 2 - -
40 1984-1985 86770 1 86030 1 90 1981-1983 86440 2 86030 1
40 (AR, AE, AT) 1988 86770 1 - - 90 1984-1994 86250 1 - -
40 1986-1989 86770 1 - - 90 Seadrive 1985-1990 86440 2 86030 1
45 C 1985 86770 1 - - 100 1971-1972 86440 1 86030 1
45 C 1986 86770 1 - - 100 1979-1980 86440 2 86030 1
45 C 1987 86770 1 - - 100 C 1984-1990 86440 2 - -
45 C 1988-1994 86770 1 - - 110 1986-1988 86440 2 86030 1
45 C 1995 86770 1 - - 115 1969-1970 86440 1 86030 1
48 1988-1995 86770 1 86270 (Inner) 1 115 1973-1983 86440 1 86030 1
50 1971-1974 86770 1 86030 1 115 1984-1985 86440 2 86030 1
50 1975 86770 1 86030 1 115 1990-1994 86440 2 - -
50 1979 86770 1 86030 1 120 1985 86440 2 86470 2
50 1980 86770 1 86030 1 120 1986-1988 86440 2 86470 2
50/60 (Pull Start) 1981-1983 86770 1 86030 1 120 1989 86440 2 86470 2
50/60 (Electric) 1981-1983 86770 1 86030 1 120 1990-1994 86440 2 86470 2
50/60 1984-1985 86770 1 86030 1 125 1971-1972 86440 1 86030 1
50/60 (Small) 1986-1987 86770 1 86030 1 125 C 1989 86440 2 86470 1
50/60 (Large) 1986-1987 86770 1 86030 1 125 C (ESX) 1989 86250 1 86470 1
50/60 1988-1989 86770 1 86030 1 135 1973-1976 86440 2 86030 1
50 1990-1995 86770 1 86270 (Inner) 1 140 1977-1983 86440 2 86030 1
55 1968-1969 86770 1 86030 1 140 1984 86440 2 86030 1
55 1976-1977 86770 1 86030 1 140 1985 86440 2 86470 2
55 1978 86770 1 86030 1 140 1986-1994 86440 2 86470 2
55 1979-1983 86770 1 86030 1 140 TX 1989 86440 2 86470 2
55 (Electric) 1980-1983 86770 1 86030 1 150 1978-1983 86440 2 86470 2
55 C 1984 86770 1 86030 1 150 1984 86440 2 - -
55 C 1985 86770 1 86030 1 155 C 1984-1985 86440 2 86030 1
55 C 1986 86770 1 - - 155 C 1986-1990 86440 2 - -
55 C 1987-1994 86770 1 - - 175 1977-1985 86440 2 86030 1
55 C 1995 86770 1 - - 175 1986-1990 86440 2 - -
60 1970 86770 1 86030 1 185 1984-1985 86440 2 86030 1
60 (3-Cyl.) 1971 86770 1 86030 1 185 1990 86440 2 86470 1
60 (Pull Start) 1980-1983 86770 1 86030 1 200 1976-1983 86440 2 86030 1
60 (Electric) 1980-1983 86770 1 86030 1 200 1984-1985 86440 2 - -
60 1970 86770 1 86030 1 200, 225 1986-1990 86440 2 86470 2
60 SST 1989 86770 1 86030 1 235 1978-1983 86440 2 86030 1
60 SST 1990 86770 1 - - 235 1984-1985 86440 2 86030 1
60 (3-Cyl.) 1987-1995 86770 1 - - 275 1985-1988 86440 2 86470 2
65 (Manual) 1968 86770 1 - - 3.6L, 300 1985-1990 86440 2 86470 2

128
