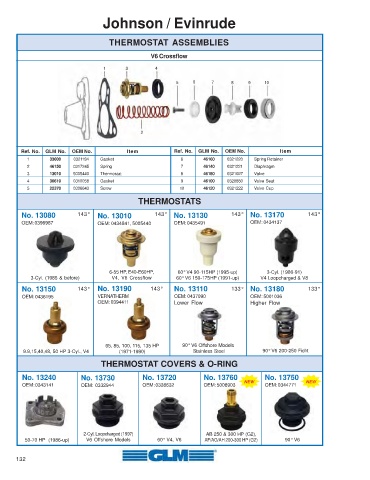

Page 132 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

THERMOSTAT ASSEMBLIES

V6 Crossflow

1 3 4
5 6 7 8 9 10

2

Ref. No. GLM No. OEM No. Item Ref. No. GLM No. OEM No. Item
1 33600 0321184 Gasket 6 46160 0321220 Spring Retainer
2 46150 0317245 Spring 7 46140 0321221 Diaphragm
3 13010 5005440 Thermostat 8 46180 0321027 Valve
4 30610 0310058 Gasket 9 46100 0320880 Valve Seat
5 22370 0306643 Screw 10 46120 0321222 Valve Cup
THERMOSTATS

No. 13080 143° No. 13010 143° No. 13130 143° No. 13170 143°
OEM: 0396987 OEM: 0434841, 5005440 OEM: 0435491 OEM: 0434137

6-55 HP, E40-E60HP, 60° V4 90-115HP (1995-up) 3-Cyl. (1986-91)
3-Cyl. (1985 & before) V4, V6 Crossflow 60° V6 150-175HP (1991-up) V4 Loopcharged & V8
No. 13150 143° No. 13190 143° No. 13110 133° No. 13180 133°
OEM: 0436195 VERNATHERM OEM: 0437090 OEM: 5001036
OEM: 0394411 Lower Flow Higher Flow

65, 85, 100, 115, 135 HP 90° V6 Offshore Models
9.9,15,40,48, 50 HP 3-Cyl., V4 (1971-1990) Stainless Steel 90° V6 200-250 Ficht
THERMOSTAT COVERS & O-RING

No. 13240 No. 13730 No. 13720 No. 13760 No. 13750
OEM: 0343141 OEM: 0332944 OEM: 0338632 OEM: 5008903 NEW OEM: 0344771 NEW

2-Cyl. Loopcharged (1997) AB 250 & 300 HP (G2),
50-70 HP (1986-up) V6 Offshore Models 60° V4, V6 AF/AG/AH 200-300 HP (G2) 90° V6

132
