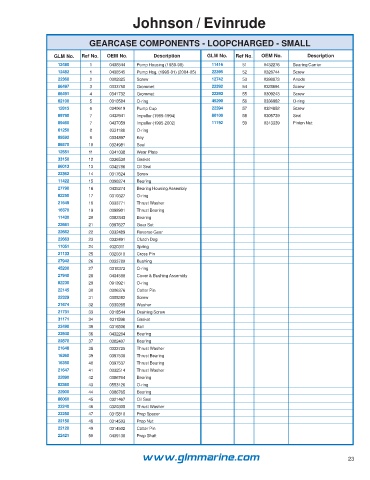

P. 23

Johnson / Evinrude



                               GEARCASE COMPONENTS - LOOPCHARGED - SMALL

                   GLM No.  Ref No.  OEM No.        Description       GLM No.  Ref No.  OEM No.        Description
                    12480      1     0438544  Pump Housing (1989-98)   11416     51     0432276   Bearing Carrier
                    12482      1     0438545  Pump Hsg. (1995-01) (2004-05)  22395  52  0328744   Screw
                    22360      2     0302325  Screw                    12742     53     0398873   Anode
                    86497      3     0333758  Grommet                  22392     54     0328694   Screw
                    86491      4     0341732  Grommet                  22393     55     0309243   Screw
                    82100      5     0310584  O-ring                   45290     56     0336982   O-ring
                    12815      6     0340619  Pump Cup                 22394     57     0324852   Screw
                    89790      7     0432941  Impeller (1989-1994)     80100     58     0305739   Seal
                    89460      7     0437059  Impeller (1995-2002)     11192     59     0313339   Pinion Nut
                    81250      8     0331188  O-ring
                    89592      9     0334897  Key
                    86570     10     0324981  Seal
                    12551     11     0341038  Wear Plate
                    33150     12     0336530  Gasket
                    86013     13     0342786  Oil Seal
                    22362     14     0317624  Screw
                    11422     15     0398874  Bearing
                    27790     16     0435274  Bearing Housing Assembly
                    82250     17     0310327  O-ring
                    21649     18     0333771  Thrust Washer
                    16370     19     0398901  Thrust Bearing
                    11430     20     0382343  Bearing
                    22661     21     0397627  Gear Set
                    22662     22     0332489  Reverse Gear
                    22663     23     0332491  Clutch Dog
                    11051     24     0320311  Spring
                    21133     25     0320310  Cross Pin
                    27942     26     0333780  Bushing
                    45200     27     0318372  O-ring
                    27940     28     0434588  Cover & Bushing Assembly
                    82230     29     0913921  O-ring
                    22145     30     0306376  Cotter Pin
                    22329     31     0305282  Screw
                    21674     32     0330265  Washer
                    21731     33     0318544  Draining Screw
                    31171     34     0311598  Gasket
                    22490     35     0316506  Ball
                    22940     36     0432264  Bearing
                    22870     37     0382407  Bearing
                    21648     38     0333725  Thrust Washer
                    16360     39     0397538  Thrust Bearing
                    16350     40     0397537  Thrust Bearing
                    21647     41     0332514  Thrust Washer
                    22890     42     0386764  Bearing
                    82360     43     0553126  O-ring
                    22900     44     0386765  Bearing
                    86060     45     0321467  Oil Seal
                    22240     46     0320305  Thrust Washer
                    22250     47     0315810  Prop Spacer
                    22150     48     0314503  Prop Nut
                    22120     49     0314502  Cotter Pin
                    22421     50     0439138  Prop Shaft


                                                www.glmmarine.com                                                   23
