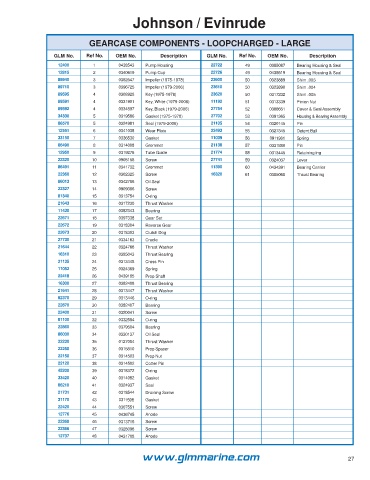

P. 27

Johnson / Evinrude



                               GEARCASE COMPONENTS - LOOPCHARGED - LARGE

                   GLM No.    Ref No.  OEM No.        Description    GLM No.    Ref No.  OEM No.       Description
                    12400       1       0438543  Pump Housing          22722      49      0385087  Bearing Housing & Seal
                    12815       2       0340619  Pump Cup              22726      49      0435519  Bearing Housing & Seal
                    89940       3       0382547  Impeller (1975-1978)  23600      50      0323889  Shim .003
                    89710       3       0396725  Impeller (1979-2006)  23610      50      0323890  Shim .004
                    89595       4       0308928  Key (1975-1978)       23620      50      0317232  Shim .005
                    89591       4       0331901  Key, White (1979-2006)  11192    51      0313339  Pinion Nut
                    89592       4       0334897  Key, Black (1979-2006)  27754    52      0388651  Cover & Seal Assembly
                    34330       5       0319586  Gasket (1975-1978)    27702      53      0391365  Housing & Bearing Assembly
                    86570       5       0324981  Seal (1979-2006)      21105      54      0320145  Pin
                    12551       6       0341038  Wear Plate            22493      55      0327345  Detent Ball
                    33150       7       0336530  Gasket                11039      56      0911961  Spring
                    86490       8       0314008  Grommet               21138      57      0331880  Pin
                    12950       9       0319276  Tube Guide            21774      58      0313445  Retaining ing
                    22320      10       0908158  Screw                 27741      59      0324037  Lever
                    86491       11      0341732  Grommet               11390      60      0434391  Bearing Carrier
                    22360      12       0302325  Screw                 16320      61      0385068  Thrust Bearing
                    86013      13       0342786  Oil Seal
                    22327      14       0909386  Screw
                    81340      15       0313754  O-ring
                    21643      16       0317230  Thrust Washer
                    11430      17       0382343  Bearing
                    22671      18       0397338  Gear Set
                    22672      19       0318304  Reverse Gear
                    22673      20       0318303  Clutch Dog
                    27730      21       0334163  Cradle
                    21644      22       0324766  Thrust Washer
                    16310      23       0385043  Thrust Bearing
                    21135      24       0313448  Cross Pin
                    11052      25       0324369  Spring
                    22418      26       0439185  Prop Shaft
                    16300      27       0382408  Thrust Bearing
                    21641      28       0313447  Thrust Washer
                    82370      29       0313446  O-ring
                    22870      30       0382407  Bearing
                    22400      31       0320041  Screw
                    81100      32       0332584  O-ring
                    22860      33       0379504  Bearing
                    86030      34       0330137  Oil Seal
                    22230      35       0127084  Thrust Washer
                    22250      36       0315810  Prop Spacer
                    22150      37       0314503  Prop Nut
                    22120      38       0314502  Cotter Pin
                    45200      39       0318372  O-ring
                    33420      40       0314082  Gasket
                    86210      41       0324937  Seal
                    21731      42       0318544  Draining Screw
                    31170      43       0311598  Gasket
                    22420      44       0307551  Screw
                    12776      45       0436745  Anode
                    22368      46       0313715  Screw
                    22366      47       0328096  Screw
                    12737      48       0431708  Anode


                                                www.glmmarine.com                                                   27
