Johnson / Evinrude

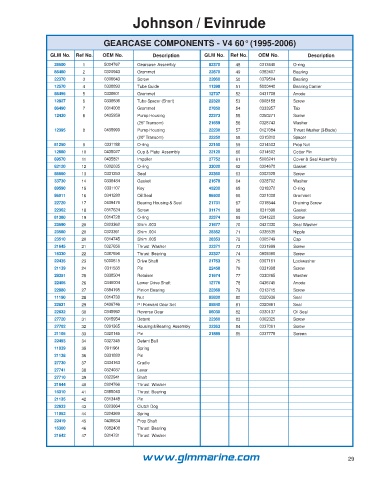

GEARCASE COMPONENTS - V4 60° (1995-2006)
GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
28500 1 5004767 Gearcase Assembly 82370 48 0313446 O-ring
86480 2 0320943 Grommet 22870 49 0382407 Bearing
22370 3 0306643 Screw 22860 50 0379504 Bearing
12570 4 0338893 Tube Guide 11398 51 5000440 Bearing Carrier
86495 5 0338601 Grommet 12737 52 0431708 Anode
12827 6 0338636 Tube Spacer (Short) 22320 53 0908158 Screw
86490 7 0314008 Grommet 27850 54 0333957 Tab
12430 8 0435959 Pump Housing 22373 55 0350271 Screw
(25” Transom) 21659 56 0328743 Washer
12395 8 0435990 Pump Housing 22230 57 0127084 Thrust Washer (3-Blade)
(20” Transom) 22250 58 0315810 Spacer
81250 9 0331188 O-ring 22150 59 0314503 Prop Nut
12880 10 0435027 Cup & Plate Assembly 22120 60 0314502 Cotter Pin
89570 11 0435821 Impeller 27752 61 5006241 Cover & Seal Assembly
82120 12 0302035 O-ring 33020 62 0324670 Gasket
86660 13 0331353 Seal 22360 63 0302325 Screw
33730 14 0338484 Gasket 21678 64 0328702 Washer
89590 15 0331107 Key 45200 65 0318372 O-ring
86011 16 0341280 Oil Seal 86500 66 0321008 Grommet
22720 17 0439476 Bearing Housing & Seal 21731 67 0318544 Draining Screw
22362 18 0317624 Screw 31171 68 0311598 Gasket
81380 19 0314728 O-ring 22374 69 0341220 Screw
23590 20 0323362 Shim .003 21677 70 0437330 Seal Washer
23580 20 0323361 Shim .004 28352 71 0336535 Nipple
23510 20 0314745 Shim .005 28353 72 0305749 Cap
21645 21 0327656 Thrust Washer 22371 73 0331999 Screw
16330 22 0387656 Thrust Bearing 22327 74 0909386 Screw
22435 23 5000615 Drive Shaft 21763 75 0307161 Lockwasher
21139 24 0311538 Pin 22458 76 0331998 Screw
28351 25 0338504 Retainer 21674 77 0330265 Washer
22405 26 0346004 Lower Drive Shaft 12776 78 0436745 Anode
22880 27 0384195 Pinion Bearing 22368 79 0313715 Screw
11190 28 0314730 Nut 85830 80 0320936 Seal
22631 29 0436746 P / Forward Gear Set 85840 81 0320961 Seal
22632 30 0345992 Reverse Gear 86030 82 0330137 Oil Seal
27720 31 0915954 Detent 22360 83 0302325 Screw
27702 32 0391365 Housing & Bearing Assembly 22363 84 0337061 Screw
21105 33 0320145 Pin 21885 85 0337778 Screen
22493 34 0327345 Detent Ball
11039 35 0911961 Spring
21138 36 0331880 Pin
27730 37 0334163 Cradle
27741 38 0324037 Lever
27710 39 0322941 Shaft
21644 40 0324766 Thrust Washer
16310 41 0385043 Thrust Bearing
21135 42 0313448 Pin
22633 43 0323664 Clutch Dog
11052 44 0324369 Spring
22419 45 0436834 Prop Shaft
16300 46 0382408 Thrust Bearing
21642 47 0314731 Thrust Washer
