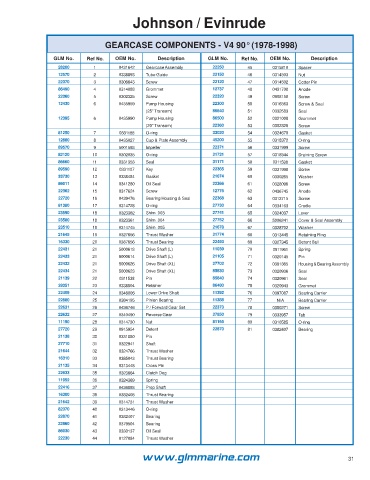

Johnson / Evinrude



                                    GEARCASE COMPONENTS - V4 90° (1978-1998)


                   GLM No.    Ref No.  OEM No.       Description      GLM No.    Ref No.  OEM No.       Description
                    28200       1       0431642  Gearcase Assembly     22250       45      0315810  Spacer
                    12570       2       0338893  Tube Guide            22150       46      0314503  Nut
                    22370       3       0306643  Screw                 22120       47      0314502  Cotter Pin
                    86490       4       0314088  Grommet               12737       48      0431708  Anode
                    22360       5       0302325  Screw                 22320       49      0908158  Screw
                    12430       6       0435959  Pump Housing          22300       50      0316563  Screw & Seal
                                                 (25” Transom)         86640       51      0332583  Seal
                    12395       6       0435990  Pump Housing          86500       52      0321008  Grommet
                                                 (20” Transom)         22360       53      0302325  Screw
                    81250       7       0331188  O-ring                33020       54      0324670  Gasket
                    12880       8       0435027  Cup & Plate Assembly  45200       55      0318372  O-ring
                    89570       9       5001593  Impeller              22371       56      0331999  Screw
                    82120       10      0302035  O-ring                21731       57      0318544  Draining Screw
                    86660       11      0331353  Seal                  31171       58      0311598  Gasket
                    89590       12      0331107  Key                   22365       59      0331998  Screw
                    33730       13      0338484  Gasket                21674       60      0330265  Washer
                    86011       14      0341280  Oil Seal              22366       61      0328096  Screw
                    22362       15      0317624  Screw                 12776       62      0436745  Anode
                    22720       16      0439476  Bearing Housing & Seal  22368     63      0313715  Screw
                    81380       17      0314728  O-ring                27730       64      0334163  Cradle
                    23590       18      0323362  Shim .003             27741       65      0324037  Lever
                    23580       18      0323361  Shim .004             27752       66      5006241  Cover & Seal Assembly
                    23510       18      0314745  Shim .005             21678       67      0328702  Washer
                    21645       19      0327656  Thrust Washer         21774       68      0313445  Retaining Ring
                    16330       20      0387656  Thrust Bearing        22493       69      0327345  Detent Ball
                    22431       21      5000618  Drive Shaft (L)       11039       70      0911961  Spring
                    22433       21      5000614  Drive Shaft (L)       21105       71      0320145  Pin
                    22432       21      5000626  Drive Shaft (XL)      27702       72      0391365  Housing & Bearing Assembly
                    22434       21      5000623  Drive Shaft (XL)      85830       73      0320936  Seal
                    21139       22      0311538  Pin                   85840       74      0320961  Seal
                    28351       23      0338504  Retainer              86480       75      0320943  Grommet
                    22409       24      0346006  Lower Drive Shaft     11392       76      0397087  Bearing Carrier
                    22880       25      0384195  Pinion Bearing        11388       77        N/A    Bearing Carrier
                    22631       26      0436746  P / Forward Gear Set  22373       78      0350271  Screw
                    22632       27      0340490  Reverse Gear          27850       79      0333957  Tab
                    11190       28      0314730  Nut                   81165       80      0310585  O-ring
                    27720       29      0915954  Detent                22870       81      0382407  Bearing
                    21138       30      0331880  Pin
                    27710       31      0322941  Shaft
                    21644       32      0324766  Thrust Washer
                    16310       33      0385043  Thrust Bearing
                    21135       34      0313448  Cross Pin
                    22633       35      0323664  Clutch Dog
                    11052       36      0324369  Spring
                    22416       37      0436888  Prop Shaft
                    16300       38      0382408  Thrust Bearing
                    21642       39      0314731  Thrust Washer
                    82370       40      0313446  O-ring
                    22870       41      0382407  Bearing
                    22860       42      0379504  Bearing
                    86030       43      0330137  Oil Seal
                    22230       44      0127084  Thrust Washer
