Johnson / Evinrude

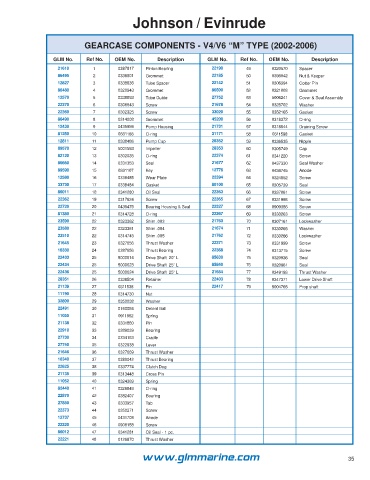

GEARCASE COMPONENTS - V4/V6 “M” TYPE (2002-2006)
GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
21610 1 0387817 Pinion Bearing 22190 49 0320570 Spacer
86495 2 0338601 Grommet 22185 50 0398042 Nut & Keeper
12827 3 0338636 Tube Spacer 22142 51 0306394 Cotter Pin
86480 4 0320943 Grommet 86500 52 0321008 Grommet
12570 5 0338893 Tube Guide 27752 53 5006241 Cover & Seal Assembly
22370 6 0306643 Screw 21678 54 0328702 Washer
22360 7 0302325 Screw 33020 55 0352165 Gasket
86490 8 0314008 Grommet 45200 56 0318372 O-ring
12430 9 0435959 Pump Housing 21731 57 0318544 Draining Screw
81250 10 0331188 O-ring 31171 58 0311598 Gasket
12811 11 0338486 Pump Cup 28352 59 0336535 Nipple
89570 12 5001593 Impeller 28353 60 0305749 Cap
82120 13 0302035 O-ring 22374 61 0341220 Screw
86660 14 0331353 Seal 21677 62 0437330 Seal Washer
89590 15 0331107 Key 12776 63 0436745 Anode
12580 16 0338485 Wear Plate 22394 64 0324852 Screw
33730 17 0338484 Gasket 80100 65 0305739 Seal
86011 18 0341280 Oil Seal 22363 66 0337061 Screw
22362 19 0317624 Screw 22365 67 0331998 Screw
22720 20 0439476 Bearing Housing & Seal 22327 68 0909386 Screw
81380 21 0314728 O-ring 22367 69 0330263 Screw
23590 22 0323362 Shim .003 21763 70 0307161 Lockwasher
23580 22 0323361 Shim .004 21674 71 0330265 Washer
23510 22 0314745 Shim .005 21762 72 0330266 Lockwasher
21645 23 0327656 Thrust Washer 22371 73 0331999 Screw
16330 24 0387656 Thrust Bearing 22368 74 0313715 Screw
22433 25 5000614 Drive Shaft 20” L 85830 75 0320936 Seal
22434 25 5000623 Drive Shaft 25” L 85840 76 0320961 Seal
22436 25 5000624 Drive Shaft 25” L 21654 77 0349193 Thrust Washer
28351 26 0338504 Retainer 22403 78 0347371 Lower Drive Shaft
21139 27 0311538 Pin 22417 79 5004765 Prop shaft
11190 28 0314730 Nut
32800 29 0350038 Washer
22491 30 0160084 Detent Ball
11055 31 0911962 Spring
21138 32 0331880 Pin
22910 33 0389039 Bearing
27730 34 0334163 Cradle
27740 35 0322938 Lever
21646 36 0327669 Thrust Washer
16340 37 0389042 Thrust Bearing
22625 38 0337774 Clutch Dog
21135 39 0313448 Cross Pin
11052 40 0324369 Spring
82440 41 0326849 O-ring
22870 42 0382407 Bearing
27850 43 0333957 Tab
22373 44 0350271 Screw
12737 45 0431708 Anode
22320 46 0908158 Screw
86012 47 0341281 Oil Seal - 1 pc.
22221 48 0126870 Thrust Washer
