Johnson / Evinrude

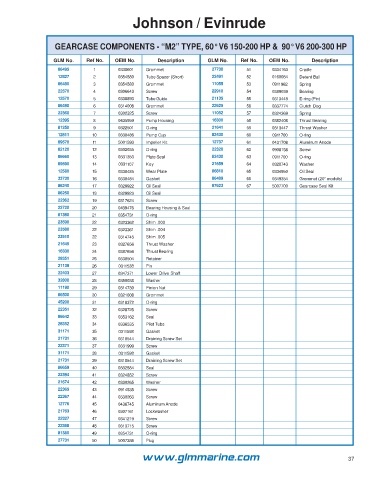

                   GEARCASE COMPONENTS - “M2” TYPE, 60° V6 150-200 HP &  90° V6 200-300 HP

                   GLM No.    Ref No.  OEM No.       Description      GLM No.    Ref No.  OEM No.       Description
                    86495       1       0338601  Grommet               27730       51      0334163  Cradle
                    12827       2       0354580  Tube Spacer (Short)   22491       52      0160084  Detent Ball
                    86480       3       0354580  Grommet               11055       53      0911962  Spring
                    22370       4       0306643  Screw                 22910       54      0389039  Bearing
                    12570       5       0338893  Tube Guide            21135       55      0313448  E-ring (Pin)
                    86490       6       0314008  Grommet               22625       56      0337774  Clutch Dog
                    22360       7       0302325  Screw                 11052       57      0324369  Spring
                    12395       8       0435959  Pump Housing          16300       58      0382408  Thrust Bearing
                    81250       9       0322501  O-ring                21641       59      0313447  Thrust Washer
                    12811       10      0338486  Pump Cup              82430       60      0911700  O-ring
                    89570       11      5001593  Impeller Kit          12737       61      0431708  Aluminum Anode
                    82120       12      0302035  O-ring                22320       62      0908158  Screw
                    86660       13      0331353  Plate Seal            82430       63      0911700  O-ring
                    89590       14      0331107  Key                   21659       64      0328743  Washer
                    12580       15      0338485  Wear Plate            86810       65      0334950  Oil Seal
                    33730       16      0338484  Gasket                86489       66      0349354  Grommet (20” models)
                    86240       17      0329922  Oil Seal              87623       67      5007700  Gearcase Seal Kit
                    86250       18      0329923  Oil Seal
                    22362       19      0317624  Screw
                    22720       20      0439476  Bearing Housing & Seal
                    81380       21      0354731  O-ring
                    23590       22      0323362  Shim .003
                    23580       22      0323361  Shim .004
                    23510       22      0314745  Shim .005
                    21645       23      0327656  Thrust Washer
                    16330       24      0387656  Thrust Bearing
                    28351       25      0338504  Retainer
                    21139       26      0311538  Pin
                    22403       27      0347371  Lower Drive Shaft
                    32800       28      0350038  Washer
                    11190       29      0314730  Pinion Nut
                    86500       30      0321008  Grommet
                    45200       31      0318372  O-ring
                    22351       32      0328725  Screw
                    86642       33      0353162  Seal
                    28352       34      0336535  Pilot Tube
                    31171       35      0311598  Gasket
                    21731       36      0318544  Draining Screw Set
                    22371       37      0331999  Screw
                    31171       38      0311598  Gasket
                    21731       39      0318544  Draining Screw Set
                    86659       40      0332584  Seal
                    22394       41      0324852  Screw
                    21674       42      0330265  Washer
                    22365       43      0914535  Screw
                    22367       44      0330263  Screw
                    12776       45      0436745  Aluminum Anode
                    21763       46      0307161  Lockwasher
                    22327       47      0341219  Screw
                    22368       48      0313715  Screw
                    81380       49      0354731  O-ring
                    27731       50      5007386  Plug
