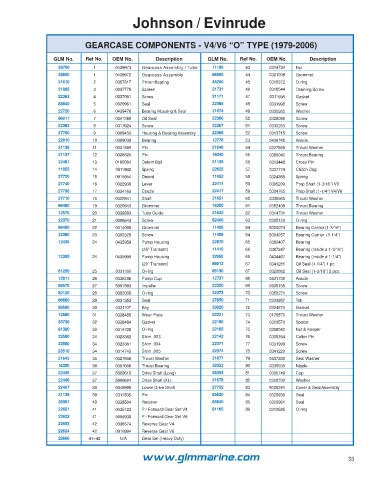

P. 33

Johnson / Evinrude



                             GEARCASE COMPONENTS - V4/V6 “O” TYPE (1979-2006)


                   GLM No.   Ref No.  OEM No.        Description      GLM No.   Ref No.  OEM No.       Description
                    28700       1      0439973  Gearcase Assembly / Tube  11190   43      0314730  Nut
                    28800       1      0439972  Gearcase Assembly      86500      44      0321008  Grommet
                    21610       2      0387817  Pinion Bearing         45200      45      0318372  O-ring
                    21885       3      0337778  Screen                 21731      46      0318544  Draining Screw
                    22363       4      0337061  Screw                  31171      47      0311598  Gasket
                    85840       5      0320961  Seal                   22365      48      0331998  Screw
                    22720       6      0439476  Bearing Housing & Seal  21674     49      0330265  Washer
                    86011       7      0341280  Oil Seal               22366      50      0328096  Screw
                    22362       8      0317624  Screw                  22367      51      0330263  Screw
                    27700       9      0389455  Housing & Bearing Assembly  22368  52     0313715  Screw
                    22910       10     0389039  Bearing                12776      53      0436745  Anode
                    21138       11     0331880  Pin                    21646      54      0327669  Thrust Washer
                    21137       12     0328825  Pin                    16340      55      0389042  Thrust Bearing
                    22491       13     0160084  Detent Ball            21135      56      0313448  Cross Pin
                    11055       14     0911962  Spring                 22625      57      0337774  Clutch Dog
                    27720       15     0915954  Detent                 11052      58      0324369  Spring
                    27740       16     0322938  Lever                  22414      59      0395209  Prop Shaft (1-3/16”) V6
                    27730       17     0334163  Cradle                 22417      59      5004765  Prop Shaft (1-1/4”) V4/V6
                    27710       18     0322941  Shaft                  21651      60      0336565  Thrust Washer
                    86480       19     0320943  Grommet                16300      61      0382408  Thrust Bearing
                    12570       20     0338893  Tube Guide             21642      62      0314731  Thrust Washer
                    22370       21     0306643  Screw                  82400      63      0305123  O-ring
                    86490       22     0314008  Grommet                11406      64      5000074  Bearing Carrier (1-3/16”)
                    22360       23     0302325  Screw                  11408      64      5004257  Bearing Carrier  (1-1/4”)
                    12430       24     0435959  Pump Housing           22870      65      0382407  Bearing
                                                (25” Transom)          11410      66      0387247  Bearing (Inside ø 1-3/16”)
                    12395       24     0435990  Pump Housing           22950      66      0434467  Bearing (Inside ø 1-1/4”)
                                                (20” Transom)          86012      67      0341281  Oil Seal (1-1/4”) 1 pc.
                    81250       25     0331188  O-ring                 85130      67      0320862  Oil Seal (1-3/16”) 2 pcs.
                    12811       26     0338486  Pump Cup               12737      68      0431708  Anode
                    89570       27     5001593  Impeller               22320      69      0908158  Screw
                    82120       28     0302035  O-ring                 22373      70      0350271  Screw
                    86660       29     0331353  Seal                   27850      71      0333957  Tab
                    89590       30     0331107  Key                    33020      72      0324670  Gasket
                    12580       31     0338485  Wear Plate             22221      73      0126870  Thrust Washer
                    33730       32     0338484  Gasket                 22190      74      0320570  Spacer
                    81380       33     0314728  O-ring                 22185      75      0398042  Nut & Keeper
                    23590       34     0323362  Shim .003              22142      76      0306394  Cotter Pin
                    23580       34     0323361  Shim .004              22371      77      0331999  Screw
                    23510       34     0314745  Shim .005              22374      78      0341220  Screw
                    21645       35     0327656  Thrust Washer          21677      79      0437330  Seal Washer
                    16330       36     0387656  Thrust Bearing         28352      80      0336535  Nipple
                    22435       37     5000615  Drive Shaft (Long)     28353      81      0305749  Cap
                    22436       37     5000624  Drive Shaft (XL)       21678      82      0328702  Washer
                    22407       38     0345905  Lower Drive Shaft      27752      83      5006241  Cover & Seal Assembly
                    21139       39     0311538  Pin                    85830      84      0320936  Seal
                    28351       40     0338504  Retainer               85840      85      0320961  Seal
                    22651       41     0435123  P / Forward Gear Set V4  81165    86      0310585  O-ring
                    22623       41     5004938  P / Forward Gear Set V6
                    22653       42     0336574  Reverse Gear V4
                    22624       42     0910994  Reverse Gear V6
                    22666     41+42      N/A    Gear Set (Heavy Duty)

                                                www.glmmarine.com                                                   33
