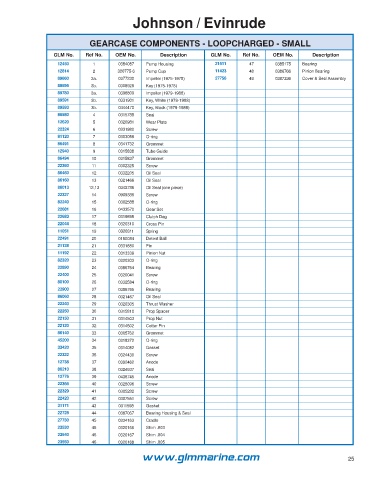

Johnson / Evinrude
GEARCASE COMPONENTS - LOOPCHARGED - SMALL
GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
12450 1 0384087 Pump Housing 21511 47 0385175 Bearing
12814 2 320775-6 Pump Cup 11423 48 0386766 Pinion Bearing
89660 3a. 0377230 Impeller (1975-1978) 27756 49 0387336 Cover & Seal Assembly
89595 3b. 0308928 Key (1975-1978)
89780 3a. 0396809 Impeller (1979-1988)
89591 3b. 0331901 Key, White (1979-1988)
89593 3b. 0344470 Key, Black (1979-1988)
86580 4 0315788 Seal
12620 5 0320981 Wear Plate
22324 6 0331980 Screw
81120 7 0303059 O-ring
86491 8 0341732 Grommet
12940 9 0315838 Tube Guide
86494 10 0315837 Grommet
22360 11 0302325 Screw
86460 12 0332205 Oil Seal
86160 13 0321466 Oil Seal
86013 12,13 0342786 Oil Seal (one piece)
22327 14 0909386 Screw
82240 15 0302588 O-ring
22681 16 0433570 Gear Set
22683 17 0319895 Clutch Dog
22044 18 0320310 Cross Pin
11051 19 0320311 Spring
22491 20 0160084 Detent Ball
21138 21 0331880 Pin
11192 22 0313339 Pinion Nut
82320 23 0320303 O-ring
22890 24 0386764 Bearing
22400 25 0320041 Screw
80100 26 0332584 O-ring
22900 27 0386765 Bearing
86060 28 0321467 Oil Seal
22240 29 0320305 Thrust Washer
22250 30 0315810 Prop Spacer
22150 31 0314503 Prop Nut
22120 32 0314502 Cotter Pin
86140 33 0305762 Grommet
45200 34 0318372 O-ring
33420 35 0314082 Gasket
22322 36 0324430 Screw
12738 37 0392462 Anode
86210 38 0324937 Seal
12776 39 0436745 Anode
22366 40 0328096 Screw
22329 41 0305282 Screw
22420 42 0307551 Screw
31171 43 0311598 Gasket
22728 44 0387067 Bearing Housing & Seal
27730 45 0334163 Cradle
23530 46 0320166 Shim .003
23540 46 0320167 Shim .004
23550 46 0320168 Shim .005
www.glmmarine.com 25
