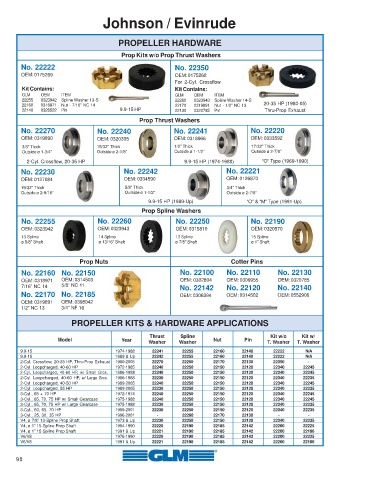

Page 98 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

PROPELLER HARDWARE

Prop Kits w/o Prop Thrust Washers
No. 22222 No. 22350
OEM: 0175269 OEM: 0175268
For 2-Cyl. Crossflow
Kit Contains: Kit Contains:
GLM OEM ITEM GLM OEM ITEM
22255 0323942 Spline Washer 13-S 22260 0323943 Spline Washer 14-S
22160 0318971 Nut - 7/16” NC 14 22170 0319891 Nut - 1/2” NC 13 20-35 HP (1980-05)
22140 0328522 Pin 9.9-15 HP 22130 0320785 Pin Thru-Prop Exhaust
Prop Thrust Washers
No. 22270 No. 22240 No. 22241 No. 22220
OEM: 0319890 OEM: 0320305 OEM: 0318966 OEM: 0333592
3/8” Thick 15/32” Thick 1/2” Thick 17/32” Thick
Outside ø 1-3/4” Outside ø 2-1/8” Outside ø 1-1/2” Outside ø 2-7/8”
2-Cyl. Crossflow, 20-35 HP 9.9-15 HP (1974-1988) “O” Type (1969-1990)
No. 22230 No. 22242 No. 22221
OEM: 0127084 OEM: 0334590 OEM: 0126870
19/32” Thick 5/8” Thick 3/4” Thick
Outside ø 2-9/16” Outside ø 1-1/2” Outside ø 2-7/8”
9.9-15 HP (1989-Up) “O” & “M” Type (1991-Up)
Prop Spline Washers
No. 22255 No. 22260 No. 22250 No. 22190
OEM: 0323942 OEM: 0323943 OEM: 0315810 OEM: 0320570
13 Spline 14 Spline 13 Spline 15 Spline
ø 5/8” Shaft ø 13/16” Shaft ø 7/8” Shaft ø 1” Shaft

Prop Nuts Cotter Pins

No. 22160 No. 22150 No. 22100 No. 22110 No. 22130
OEM: 0318971 OEM: 0314503 OEM: 0302804 OEM: 0309955 OEM: 0320785
7/16” NC 14 5/8” NC 11 No. 22142 No. 22120 No. 22140
No. 22170 No. 22185 OEM: 0306394 OEM: 0314502 OEM: 0552906
OEM: 0319891 OEM: 0398042
1/2” NC 13 3/4” NF 16

PROPELLER KITS & HARDWARE APPLICATIONS

Thrust Spline Kit w/o Kit w/
Model Year Washer Washer Nut Pin T. Washer T. Washer
9.9-15 1974-1988 22241 22255 22160 22140 22222 N/A
9.9-15 1989 & Up 22242 22255 22160 22140 22222 N/A
2-Cyl. Crossflow, 20-35 HP, Thru-Prop Exhaust 1980-2005 22270 22260 22170 22130 22350 -
2-Cyl. Loopcharged, 40-60 HP 1972-1985 22240 22250 22150 22120 22340 22245
2-Cyl. Loopcharged, 40-60 HP, w/ Small Grcs. 1986-1988 22240 22250 22150 22120 22340 22245
2-Cyl. Loopcharged, 40-60 HP, w/ Large Grcs. 1986-1988 22230 22250 22150 22120 22340 22235
2-Cyl. Loopcharged, 40-50 HP 1989-2005 22240 22250 22150 22120 22340 22245
2-Cyl. Loopcharged, 55 HP 1989-2005 22230 22250 22150 22120 22340 22235
3-Cyl., 65 + 70 HP 1972-1974 22240 22250 22150 22120 22340 22245
3-Cyl., 65, 70, 75 HP w/ Small Gearcase 1975-1988 22240 22250 22150 22120 22340 22245
3-Cyl., 65, 70, 75 HP w/ Large Gearcase 1975-1988 22230 22250 22150 22120 22340 22235
3-Cyl., 60, 65, 70 HP 1989-2001 22230 22250 22150 22120 22340 22235
3-Cyl., 25, 30, 35 HP 1996-2001 - 22260 22170 22130 - -
V4, ø 7/8” 13-Spline Prop Shaft 1973 & Up 22230 22250 22150 22120 22340 22235
V4, ø 1” 15-Spline Prop Shaft 1984-1990 22220 22190 22185 22142 22200 22225
V4, ø 1” 15-Spline Prop Shaft 1991 & Up 22221 22190 22185 22142 22200 22186
V6/V8 1976-1990 22220 22190 22185 22142 22200 22225
V6/V8 1991 & Up 22221 22190 22185 22142 22200 22186

98
