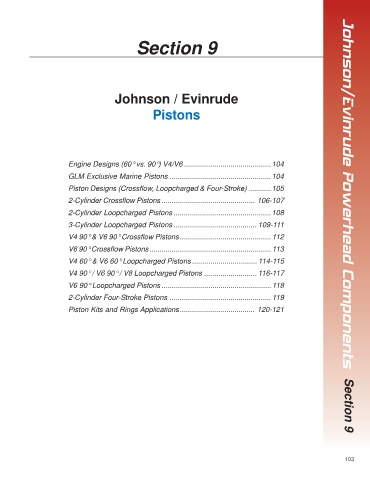

P. 103
Section 9
Johnson / Evinrude
Pistons
Engine Designs (60° vs. 90°) V4/V6 ...........................................104
GLM Exclusive Marine Pistons ..................................................104
Piston Designs (Crossflow, Loopcharged & Four-Stroke) ...........105 Johnson/Evinrude Powerhead Components
2-Cylinder Crossflow Pistons .............................................. 106-107
2-Cylinder Loopcharged Pistons ................................................108
3-Cylinder Loopcharged Pistons ......................................... 109-111
V4 90° & V6 90° Crossflow Pistons............................................. 112
V6 90° Crossflow Pistons............................................................ 113
V4 60° & V6 60° Loopcharged Pistons ................................ 114-115
V4 90° / V6 90° / V8 Loopcharged Pistons .......................... 116-117
V6 90° Loopcharged Pistons ...................................................... 118
2-Cylinder Four-Stroke Pistons .................................................. 119
Piston Kits and Rings Applications..................................... 120-121
Section 9
103
