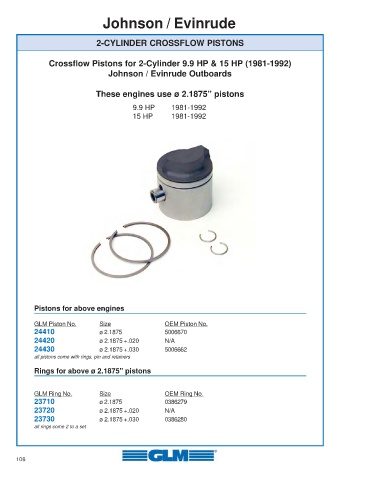

Page 106 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

2-CYLINDER CROSSFLOW PISTONS

Crossflow Pistons for 2-Cylinder 9.9 HP & 15 HP (1981-1992)
Johnson / Evinrude Outboards

These engines use ø 2.1875” pistons

9.9 HP 1981-1992
15 HP 1981-1992

Pistons for above engines

GLM Piston No. Size OEM Piston No.
24410 ø 2.1875 5006670
24420 ø 2.1875 +.020 N/A
24430 ø 2.1875 +.030 5006662
all pistons come with rings, pin and retainers

Rings for above ø 2.1875” pistons

GLM Ring No. Size OEM Ring No.
23710 ø 2.1875 0386279
23720 ø 2.1875 +.020 N/A
23730 ø 2.1875 +.030 0386280
all rings come 2 to a set

106
