Johnson / Evinrude

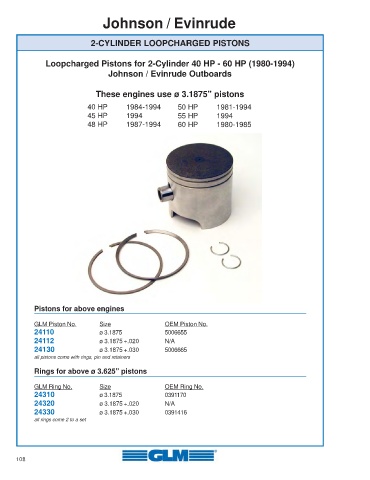

2-CYLINDER LOOPCHARGED PISTONS

Loopcharged Pistons for 2-Cylinder 40 HP - 60 HP (1980-1994)
Johnson / Evinrude Outboards

These engines use ø 3.1875” pistons

40 HP 1984-1994 50 HP 1981-1994
45 HP 1994 55 HP 1994
48 HP 1987-1994 60 HP 1980-1985

Pistons for above engines

GLM Piston No. Size OEM Piston No.
24110 ø 3.1875 5006655
24112 ø 3.1875 +.020 N/A
24130 ø 3.1875 +.030 5006665
all pistons come with rings, pin and retainers

Rings for above ø 3.625” pistons

GLM Ring No. Size OEM Ring No.
24310 ø 3.1875 0391170
24320 ø 3.1875 +.020 N/A
24330 ø 3.1875 +.030 0391416
all rings come 2 to a set

108
