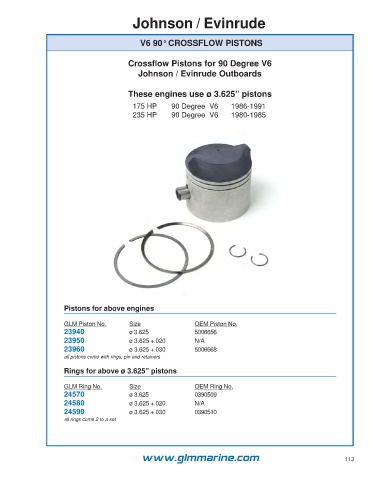

P. 113
Johnson / Evinrude
V6 90° CROSSFLOW PISTONS
Crossflow Pistons for 90 Degree V6
Johnson / Evinrude Outboards
These engines use ø 3.625” pistons
175 HP 90 Degree V6 1986-1991
235 HP 90 Degree V6 1980-1985
Pistons for above engines
GLM Piston No. Size OEM Piston No.
23940 ø 3.625 5006656
23950 ø 3.625 +.020 N/A
23960 ø 3.625 +.030 5006668
all pistons come with rings, pin and retainers
Rings for above ø 3.625” pistons
GLM Ring No. Size OEM Ring No.
24570 ø 3.625 0390509
24580 ø 3.625 +.020 N/A
24590 ø 3.625 +.030 0390510
all rings come 2 to a set
