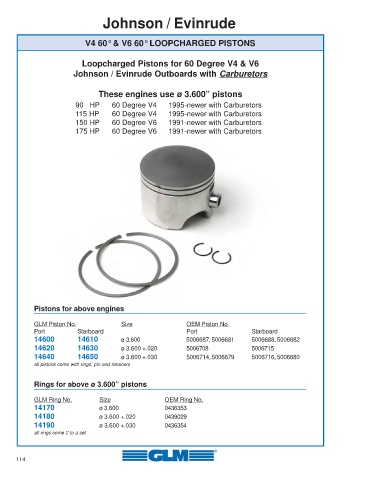

Johnson / Evinrude

V4 60° & V6 60° LOOPCHARGED PISTONS

Loopcharged Pistons for 60 Degree V4 & V6
Johnson / Evinrude Outboards with Carburetors

These engines use ø 3.600” pistons

90 HP 60 Degree V4 1995-newer with Carburetors
115 HP 60 Degree V4 1995-newer with Carburetors
150 HP 60 Degree V6 1991-newer with Carburetors
175 HP 60 Degree V6 1991-newer with Carburetors

Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
14600 14610 ø 3.600 5006687, 5006681 5006688, 5006682
14620 14630 ø 3.600 +.020 5006708 5006715
14640 14650 ø 3.600 +.030 5006714, 5006679 5006716, 5006680
all pistons come with rings, pin and retainers

Rings for above ø 3.600” pistons

GLM Ring No. Size OEM Ring No.
14170 ø 3.600 0436353
14180 ø 3.600 +.020 0439029
14190 ø 3.600 +.030 0436354
all rings come 2 to a set

114
