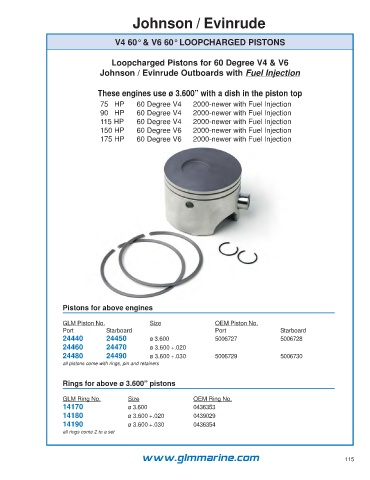

Johnson / Evinrude

V4 60° & V6 60° LOOPCHARGED PISTONS

Loopcharged Pistons for 60 Degree V4 & V6
Johnson / Evinrude Outboards with Fuel Injection

These engines use ø 3.600” with a dish in the piston top

75 HP 60 Degree V4 2000-newer with Fuel Injection
90 HP 60 Degree V4 2000-newer with Fuel Injection
115 HP 60 Degree V4 2000-newer with Fuel Injection
150 HP 60 Degree V6 2000-newer with Fuel Injection
175 HP 60 Degree V6 2000-newer with Fuel Injection

Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
24440 24450 ø 3.600 5006727 5006728
24460 24470 ø 3.600 +.020
24480 24490 ø 3.600 +.030 5006729 5006730
all pistons come with rings, pin and retainers

Rings for above ø 3.600” pistons

GLM Ring No. Size OEM Ring No.
14170 ø 3.600 0436353
14180 ø 3.600 +.020 0439029
14190 ø 3.600 +.030 0436354
all rings come 2 to a set

www.glmmarine.com 115
