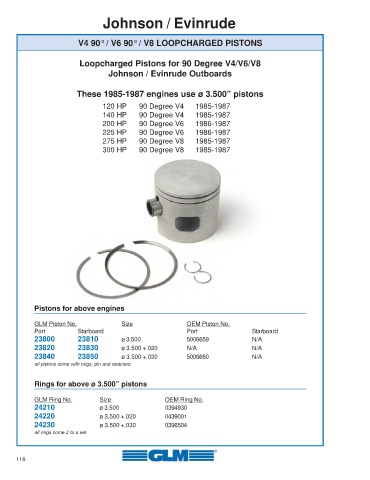

Johnson / Evinrude

V4 90° / V6 90° / V8 LOOPCHARGED PISTONS

Loopcharged Pistons for 90 Degree V4/V6/V8
Johnson / Evinrude Outboards

These 1985-1987 engines use ø 3.500” pistons

120 HP 90 Degree V4 1985-1987
140 HP 90 Degree V4 1985-1987
200 HP 90 Degree V6 1986-1987
225 HP 90 Degree V6 1986-1987
275 HP 90 Degree V8 1985-1987
300 HP 90 Degree V8 1985-1987

Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
23800 23810 ø 3.500 5006659 N/A
23820 23830 ø 3.500 +.020 N/A N/A
23840 23850 ø 3.500 +.030 5006660 N/A
all pistons come with rings, pin and retainers

Rings for above ø 3.500” pistons

GLM Ring No. Size OEM Ring No.
24210 ø 3.500 0394930
24220 ø 3.500 +.020 0439001
24230 ø 3.500 +.030 0396504
all rings come 2 to a set

116
