Johnson / Evinrude

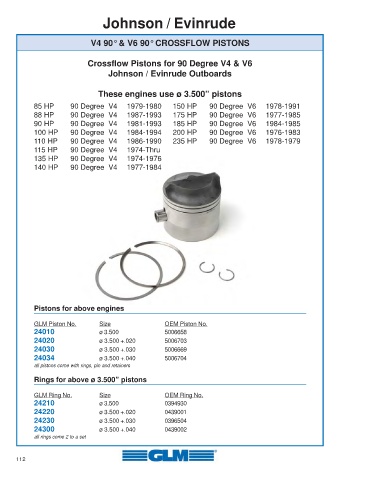

V4 90° & V6 90° CROSSFLOW PISTONS

Crossflow Pistons for 90 Degree V4 & V6
Johnson / Evinrude Outboards

These engines use ø 3.500” pistons

85 HP 90 Degree V4 1979-1980 150 HP 90 Degree V6 1978-1991
88 HP 90 Degree V4 1987-1993 175 HP 90 Degree V6 1977-1985
90 HP 90 Degree V4 1981-1993 185 HP 90 Degree V6 1984-1985
100 HP 90 Degree V4 1984-1994 200 HP 90 Degree V6 1976-1983
110 HP 90 Degree V4 1986-1990 235 HP 90 Degree V6 1978-1979
115 HP 90 Degree V4 1974-Thru
135 HP 90 Degree V4 1974-1976
140 HP 90 Degree V4 1977-1984

Pistons for above engines

GLM Piston No. Size OEM Piston No.
24010 ø 3.500 5006658
24020 ø 3.500 +.020 5006703
24030 ø 3.500 +.030 5006669
24034 ø 3.500 +.040 5006704
all pistons come with rings, pin and retainers

Rings for above ø 3.500” pistons

GLM Ring No. Size OEM Ring No.
24210 ø 3.500 0394930
24220 ø 3.500 +.020 0439001
24230 ø 3.500 +.030 0396504
24300 ø 3.500 +.040 0439002
all rings come 2 to a set

112
