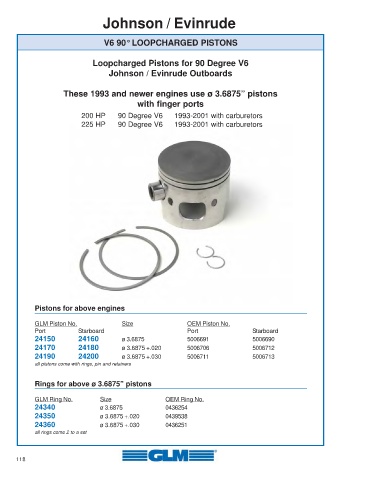

Johnson / Evinrude

V6 90° LOOPCHARGED PISTONS

Loopcharged Pistons for 90 Degree V6
Johnson / Evinrude Outboards

These 1993 and newer engines use ø 3.6875” pistons
with finger ports

200 HP 90 Degree V6 1993-2001 with carburetors
225 HP 90 Degree V6 1993-2001 with carburetors

Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
24150 24160 ø 3.6875 5006691 5006690
24170 24180 ø 3.6875 +.020 5006706 5006712
24190 24200 ø 3.6875 +.030 5006711 5006713
all pistons come with rings, pin and retainers

Rings for above ø 3.6875” pistons

GLM Ring No. Size OEM Ring No.
24340 ø 3.6875 0436254
24350 ø 3.6875 +.020 0439538
24360 ø 3.6875 +.030 0436251
all rings come 2 to a set

118
