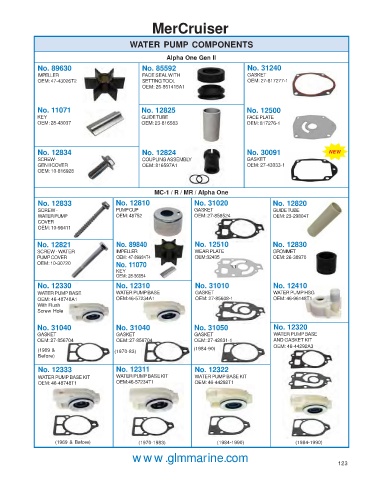

MerCruiser

WATER PUMP COMPONENTS

Alpha One Gen II
No. 89630 No. 85592 No. 31240
IMPELLER FACE SEAL WITH GASKET
OEM: 47-43026T2 SETTING TOOL OEM: 27-817277-1
OEM: 26-861415A1

No. 11071 No. 12825 No. 12500
KEY GUIDE TUBE FACE PLATE
OEM: 28-43037 OEM: 23-816583 OEM: 817276-1

No. 12834 No. 12824 No. 30091 NEW
SCREW- COUPLING ASSEMBLY GASKET
GEN II COVER OEM: 816597A1 OEM: 27-43033-1
OEM: 10-816928

MC-1 / R / MR / Alpha One
No. 12833 No. 12810 No. 31020 No. 12820
SCREW - PUMP CUP GASKET GUIDE TUBE
WATER PUMP OEM: 48752 OEM: 27-858524 OEM: 23-29804T
COVER
OEM: 10-96411

No. 12821 No. 89840 No. 12510 No. 12830
SCREW - WATER IMPELLER WEAR PLATE GROMMET
PUMP COVER OEM: 47-89984T4 OEM:32435 OEM: 26-38970
OEM: 10-30720 No. 11070
KEY
OEM: 28-56654
No. 12330 No. 12310 No. 31010 No. 12410
WATER PUMP BASE WATER PUMP BASE GASKET WATER PUMP HSG
OEM: 46-48748A1 OEM:46-57234A1 OEM: 27-85608-1 OEM: 46-96148T1
With Flush
Screw Hole

No. 31040 No. 31040 No. 31050 No. 12320
GASKET GASKET GASKET WATER PUMP BASE
OEM: 27-856704 OEM: 27-856704 OEM: 27-42631-1 AND GASKET KIT
OEM: 46-44292A3
(1969 & (1970-83) (1984-90)
Before)
No. 12333 No. 12311 No. 12322
WATER PUMP BASE KIT WATER PUMP BASE KIT WATER PUMP BASE KIT
OEM: 46-48748T1 OEM:46-57234T1 OEM: 46-44292T1

(1969 & Before) (1970-1983) (1984-1990) (1984-1990)

www.glmmarine.com
123
