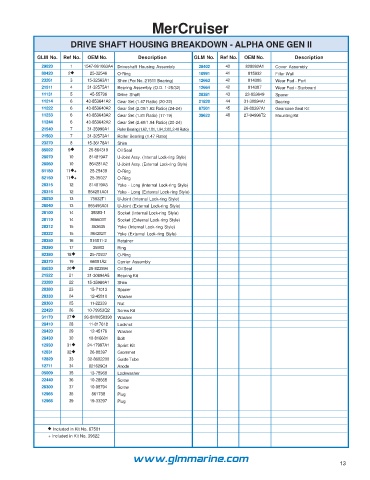

                        DRIVE SHAFT HOUSING BREAKDOWN - ALPHA ONE GEN II

             GLM No.  Ref No.  OEM No.         Description       GLM No.  Ref No.  OEM No.         Description
               29020    1    1547-861063A4  Driveshaft Housing Assembly  28402  40  828692A1  Cover Assembly
               80420    2     25-32546  O-Ring                    10991    41     815932   Filler Wall
               23261    3     15-32563A1  Shim (For No. 21511 Bearing)  12663  42  814386   Wear Pad - Port
               21511    4     31-32575A1  Bearing Assembly (O.D. 1-25/32)  12664  42  814387  Wear Pad - Starboard
               11131    5      45-55796  Drive Shaft               28381    43    23-853649  Spacer
               11214    6     43-853641A2  Gear Set (1.47 Ratio) (20-22)  21820  44  31-30894A1  Bearing
               11222    6     43-853640A2  Gear Set (2.00/1.62 Ratio) (24-24)  87501  45  26-88397A1  Gearcase Seal Kit
               11233    6     43-853643A2  Gear Set (1.81 Ratio) (17-19)  39622  46  27-94996T2  Mounting Kit
               11244    6     43-853642A2  Gear Set (2.40/1.94 Ratio) (20-24)
               21540    7     31-35990A1  Roller Bearing (1.62, 1.81, 1.94, 2.00, 2.40 Ratio)
               21560    7     31-32573A1  Roller Bearing (1.47 Ratio)
               23270    8     15-36178A1  Shim
               85022    9    26-864319  Oil Seal
               28070    10     814819A7  U-Joint Assy. (Internal Lock-ring Style)
               28080    10     864281A2  U-Joint Assy. (External Lock-ring Style)
               81180   11+    25-25439  O-Ring
               82150   11+    25-35027  O-Ring
               28315    12     814819A3  Yoke - Long (Internal Lock-ring Style)
               28316    12    864281A01  Yoke - Long (External Lock-ring Style)
               28030    13     75832T1  U-Joint (Internal Lock-ring Style)
               28040    13    865496A01  U-Joint (External Lock-ring Style)
               28100    14     39383-1  Socket (Internal Lock-ring Style)
               28110    14     865503T  Socket (External Lock-ring Style)
               28312    15     853635   Yoke (Internal Lock-ring Style)
               28322    15     864282T  Yoke (External Lock-ring Style)
               28350    16     816811-2  Retainer
               28390    17      35983   Ring
               82380   18     25-70937  O-Ring
               28370    19     66081A2  Carrier Assembly
               85030   20    26-823894  Oil Seal
               21522    21    31-30894A5  Bearing Kit
               23280    22    15-35980A1  Shim
               28380    23     15-71013  Spacer
               28330    24     12-45810  Washer
               28360    25     11-22339  Nut
               22420    26    10-79953Q2  Screw Kit
               31170   27    26-8M0058390  Washer
               28410    28    11-817618  Locknut
               28420    29     12-45176  Washer
               28430    30    10-816601  Bolt
               12930   31    24-17997A1  Sprint Kit
               12831   32     26-88397  Grommet
               12829    33    32-8602200  Guide Tube
               12711    34    821629Q1  Anode
               05009    35     13-78968  Lockwasher
               22440    36     10-28668  Screw
               28300    37     10-98794  Screw
               12965    38     861738   Plug
               12966    39     19-33297  Plug




                  Included in Kit No. 87501
                 + Included in Kit No. 39622
