MerCruiser

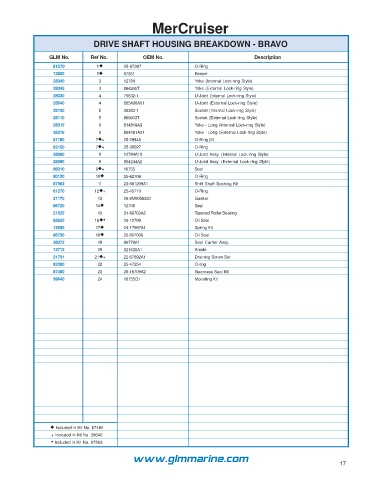

DRIVE SHAFT HOUSING BREAKDOWN - BRAVO

GLM No. Ref No. OEM No. Description
81570 1 25-97387 O-Ring
12920 2 97351 Keeper
28340 3 12784 Yoke (Internal Lock-ring Style)
28345 3 864245T Yoke (External Lock-ring Style)
28030 4 75832-1 U-Joint (Internal Lock-ring Style)
28040 4 865496A01 U-Joint (External Lock-ring Style)
28100 5 39383-1 Socket (Internal Lock-ring Style)
28110 5 865503T Socket (External Lock-ring Style)
28315 6 814819A3 Yoke - Long (Internal Lock-ring Style)
28316 6 864281A01 Yoke - Long (External Lock-ring Style)
81180 7+ 25-29845 O-Ring (2)
82150 7+ 25-35027 O-Ring
28060 8 12784A10 U-Joint Assy. (Internal Lock-ring Style)
28090 8 864244A2 U-Joint Assy. (External Lock-ring Style)
86310 9+ 16755 Seal
80130 10 25-62706 O-Ring
87563 11 23-861209A1 Shift Shaft Bushing Kit
81270 12+ 25-45710 O-Ring
31170 13 26-8M0058390 Gasket
86720 14 12708 Seal
21525 15 31-86763A2 Tapered Roller Bearing
85820 16• 26-12709 Oil Seal
12930 17 24-17997A1 Spring Kit
86730 18 26-807006 Oil Seal
28372 19 86779A1 Seal Carrier Assy.
12712 20 821630A1 Anode
21731 21+ 22-67892A1 Draining Screw Set
82390 22 25-47254 O-ring
87480 23 26-16709A2 Gearcase Seal Kit
39640 24 16755Q1 Mounting Kit

 Included in Kit No. 87480
+ Included in Kit No. 39640
• Included in Kit No. 87563

www.glmmarine.com
17
