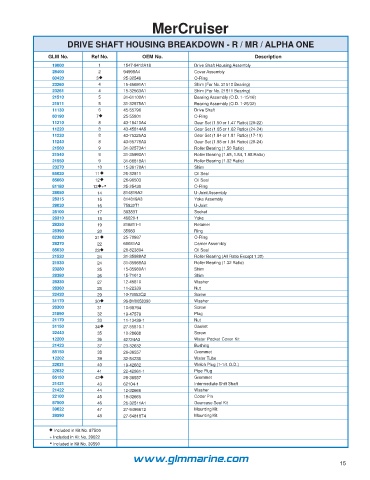

                       DRIVE SHAFT HOUSING BREAKDOWN - R / MR / ALPHA ONE

                 GLM No.       Ref No.          OEM No.                              Description
                  19000           1       1547-9412A18           Drive Shaft Housing Assembly
                  28400           2       94998A4                Cover Assembly
                  80420          3       25-32546               O-Ring
                  23260           4       15-45691A1             Shim (For No. 21510 Bearing)
                  23261           4       15-32563A1             Shim (For No. 21511 Bearing)
                  21510           5       31-61100A1             Bearing Assembly (O.D. 1-15/16)
                  21511           5       31-32575A1             Bearing Assembly (O.D. 1-25/32)
                  11130           6       45-55796               Drive Shaft
                  80190          7       25-55801               O-Ring
                  11210           8       43-18410A4             Gear Set (1.50 or 1.47 Ratio) (20-22)
                  11220           8       43-45814A5             Gear Set (1.65 or 1.62 Ratio) (24-24)
                  11230           8       43-75325A3             Gear Set (1.84 or 1.81 Ratio) (17-19)
                  11240           8       43-55778A3             Gear Set (1.98 or 1.94 Ratio) (20-24)
                  21560           9       31-32573A1             Roller Bearing (1.50 Ratio)
                  21540           9       31-35990A1             Roller Bearing (1.65, 1.84, 1.98 Ratio)
                  21550           9       31-66818A1             Roller Bearing (1.32 Ratio)
                  23270          10       15-36178A1             Shim
                  85020         11       26-32511               Oil Seal
                  85060         12       26-96503               Oil Seal
                  81180         13+•     25-25439               O-Ring
                  28050          14       814819A2               U-Joint Assembly
                  28315          15       814819A3               Yoke Assembly
                  28030          16       75832T1                U-Joint
                  28100          17       39383T                 Socket
                  28310          18       46020-1                Yoke
                  28350          19       816811-1               Retainer
                  28390          20       35983                  Ring
                  82380         21       25-70937               O-Ring
                  28370          22       66081A2                Carrier Assembly
                  85030         23       26-823894              Oil Seal
                  21520          24       31-35988A2             Roller Bearing (All Ratio Except 1.32)
                  21530          24       31-35988A3             Roller Bearing (1.32 Ratio)
                  23280          25       15-35980A1             Shim
                  28380          26       15-71013               Shim
                  28330          27       12-45810               Washer
                  28360          28       11-22339               Nut
                  22420          29       10-79953Q2             Screw
                  31170         30       26-8M0058390           Washer
                  28300          31       10-98794               Screw
                  21890          32       19-47579               Plug
                  21170          33       11-13439-1             Nut
                  31150         34       27-55810-1             Gasket
                  22440          35       10-28668               Screw
                  12200          36       42724A3                Water Pocket Cover Kit
                  21423          37       23-32632               Bushing
                  85150          38       26-36557               Grommet
                  12202          39       32-54236               Water Tube
                  22031          40       19-42682               Welch Plug (1-1/4 O.D.)
                  22032          41       22-42861-1             Pipe Plug
                  85150         42       26-36557               Grommet
                  21421          43       62104-1                Intermediate Shift Shaft
                  21422          44       12-32666               Washer
                  22100          45       18-32665               Cotter Pin
                  87500          46       26-32511A1             Gearcase Seal Kit
                  39622          47       27-94996T2             Mounting Kit
                  39590          48       27-64818T4             Mounting Kit

                  Included in Kit No. 87500
                 + Included in Kit No. 39622
                  • Included in Kit No. 39590
