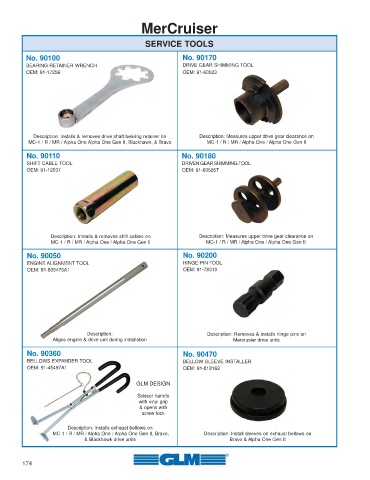

MerCruiser
SERVICE TOOLS
No. 90100 No. 90170
BEARING RETAINER WRENCH DRIVE GEAR SHIMMING TOOL
OEM: 91-17256 OEM: 91-60523
Description: Installs & removes drive shaft bearing retainer on Description: Measures upper drive gear clearance on
MC-1 / R / MR / Alpha One Alpha One Gen II, Blackhawk, & Bravo MC-1 / R / MR / Alpha One / Alpha One Gen II
No. 90110 No. 90180
SHIFT CABLE TOOL DRIVEN GEAR SHIMMING TOOL
OEM: 91-12037 OEM: 91-60526T
Description: Installs & removes shift cables on Description: Measures upper drive gear clearance on
MC-1 / R / MR / Alpha One / Alpha One Gen II MC-1 / R / MR / Alpha One / Alpha One Gen II
No. 90050 No. 90200
ENGINE ALIGNMENT TOOL HINGE PIN TOOL
OEM: 91-805475A1 OEM: 91-78310
Description: Description: Removes & installs hinge pins on
Aligns engine & drive unit during installation Mercrusier drive units
No. 90360 No. 90470
BELLOWS EXPANDER TOOL BELLOW SLEEVE INSTALLER
OEM: 91-45497A1 OEM: 91-818162
GLM DESIGN
Scissor handle
with vinyl grip
& opens with
screw lock
Description: Installs exhaust bellows on
MC-1 / R / MR / Alpha One / Alpha One Gen II, Bravo, Description: Install sleeves on exhaust bellows on
& Blackhawk drive units Bravo & Alpha One Gen II
