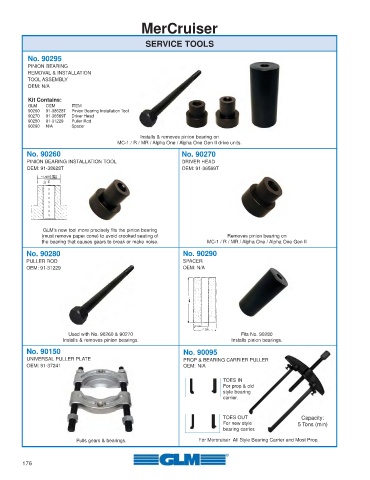

MerCruiser

SERVICE TOOLS

No. 90295
PINION BEARING
REMOVAL & INSTALLATION
TOOL ASSEMBLY
OEM: N/A

Kit Contains:
GLM OEM ITEM
90260 91-38628T Pinion Bearing Installation Tool
90270 91-36569T Driver Head
90280 91-31229 Puller Rod
90290 N/A Spacer
Installs & removes pinion bearing on
MC-1 / R / MR / Alpha One / Alpha One Gen II drive units.
No. 90260 No. 90270
PINION BEARING INSTALLATION TOOL DRIVER HEAD
OEM: 91-38628T OEM: 91-36569T

GLM’s new tool more precisely fits the pinion bearing
(must remove paper cone) to avoid crooked seating of Removes pinion bearing on
the bearing that causes gears to break or make noise. MC-1 / R / MR / Alpha One / Alpha One Gen II

No. 90280 No. 90290
PULLER ROD SPACER
OEM: 91-31229 OEM: N/A

Used with No. 90260 & 90270 Fits No. 90280
Installs & removes pinion bearings. Installs pinion bearings.
No. 90150 No. 90095
UNIVERSAL PULLER PLATE PROP & BEARING CARRIER PULLER
OEM: 91-37241 OEM: N/A

TOES IN
For prop & old
style bearing
carrier.

TOES OUT Capacity:
For new style 5 Tons (min)
bearing carrier.
Pulls gears & bearings. For Mercruiser All Style Bearing Carrier and Most Prop.

176
