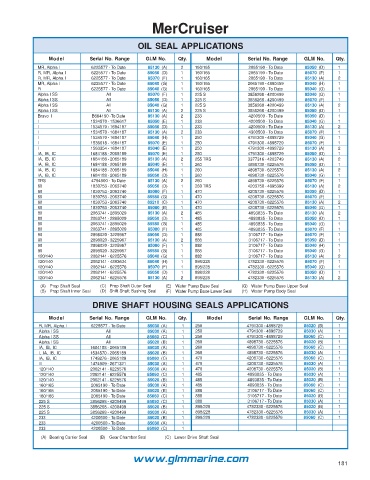

Page 181 - MerCruiser_Catalog_Flipbook

MerCruiser

OIL SEAL APPLICATIONS

Model Serial No. Range GLM No. Qty. Model Serial No. Range GLM No. Qty.
MR, Alpha I 6225577 - To Date 85130 (A) 2 160/165 2065190 - To Date 85050 (D) 1
R, MR, Alpha I 6225577 - To Date 85050 (D) 1 160/165 2065190 - To Date 85070 (F) 1
R, MR, Alpha I 6225577 - To Date 85070 (F) 1 160/165 2065190 - To Date 85130 (A) 2
MR, Alpha I 6225577 - To Date 85040 (G) 1 160/165 2065190 - 4890459 85040 (H) 1
R 6225577 - To Date 85040 (G) 1 160/165 2065190 - To Date 85040 (G) 1
Alpha I SS All 85070 (F) 1 225 S 3856268 - 4200499 85040 (G) 1
Alpha I SS All 85050 (D) 1 225 S 3856268 - 4200499 85070 (F) 1
Alpha I SS All 85040 (G) 1 225 S 3856268 - 4200499 85130 (A) 2
Alpha I SS All 85130 (A) 2 225 S 3856268 - 4200499 85050 (D) 1
Bravo I B664190 -To Date 85130 (A) 2 233 4200500 - To Date 85050 (D) 1
I 1534570 - 1536617 85050 (E) 1 233 4200500 - To Date 85040 (G) 1
I 1534570 - 1684187 85050 (D) 1 233 4200500 - To Date 85130 (A) 2
I 1534570 - 1684187 85130 (A) 2 233 4300500 - To Date 85070 (F) 1
I 1534570 - 1684187 85040 (H) 1 250 4791300 - 4898729 85040 (G) 1
I 1536618 - 1684187 85070 (E) 1 250 4791300 - 4898729 85070 (F) 1
I 1563354 - 1684187 85040 (E) 1 250 4791300 - 4898729 85130 (A) 2
IA, IB, IC 1684188 - 2065189 85070 (E) 1 250 4791300 - 4898729 85050 (D) 1
IA, IB, IC 1684188 - 2065189 85130 (A) 2 255 TRS 3377316 - 4203749 85130 (A) 2
IA, IB, IC 1684188 - 2065189 85040 (E) 1 260 4898730 - 6225576 85050 (D) 1
IA, IB, IC 1684188 - 2065189 85040 (H) 1 260 4898730 - 6225576 85130 (A) 2
IA, IB, IC 1684188 - 2065189 85050 (D) 1 260 4898730 - 6225576 85040 (G) 1
TRS 4794900 - To Date 85130 (A) 2 260 4898730 - 6225576 85070 (F) 1
60 1830753 - 2063740 85050 (D) 1 280 TRS 4203750 - 4895399 85130 (A) 2
60 1830753 - 2063740 85080 (F) 1 470 4208730 - 6225576 85050 (D) 1
60 1830753 - 2063740 85580 (G) 1 470 4208730 - 6225576 85070 (F) 1
60 1830753 - 2063740 85210 (C) 1 470 4208730 - 6225576 85130 (A) 2
60 1830753 - 2063740 85080 (B) 1 470 4208730 - 6225576 85040 (G) 1
80 2063741 - 2895029 85130 (A) 2 485 4893835 - To Date 85130 (A) 2
80 2063741 - 2895029 85050 (D) 1 485 4893835 - To Date 85050 (D) 1
80 2063741 - 2895029 85580 (G) 1 485 4893835 - To Date 85040 (G) 1
80 2063741 - 2895029 85080 (F) 1 485 4893835 - To Date 85070 (F) 1
90 2898020 - 3225967 85050 (D) 1 888 3106717 - To Date 85070 (F) 1
90 2898020 - 3225967 85130 (A) 2 888 3106717 - To Date 85050 (D) 1
90 2898020 - 3225967 85080 (F) 1 888 3106717 - To Date 85040 (H) 1
90 2898020 - 3225967 85580 (G) 1 888 3106717 - To Date 85040 (G) 1
120/140 2062141 - 6225576 85040 (G) 1 888 3106717 - To Date 85130 (A) 2
120/140 2062141 - 4893634 85040 (H) 1 898/228 4782330 - 6225576 85070 (F) 1
120/140 2062141 - 6225576 85070 (F) 1 898/228 4782330 - 6225576 85040 (G) 1
120/140 2062141 - 6225576 85050 (D) 1 898/228 4782330 - 6225576 85050 (D) 1
120/140 2062141 - 6225576 85130 (A) 2 898/228 4782330 - 6225576 85130 (A) 2
(A) Prop Shaft Seal (C) Prop Shaft Outer Seal (E) Water Pump Base Seal (G) Water Pump Base Upper Seal
(B) Prop Shaft Inner Seal (D) Shift Shaft Bushing Seal (F) Water Pump Base Lower Seal (H) Water Pump Body Seal
DRIVE SHAFT HOUSING SEALS APPLICATIONS

Model Serial No. Range GLM No. Qty. Model Serial No. Range GLM No. Qty.
R, MR, Alpha I 6225577 - To Date 85030 (A) 1 250 4791300 - 4898729 85020 (B) 1
Alpha I SS All 85030 (A) 1 250 4791300 - 4898729 85030 (A) 1
Alpha I SS All 85060 (C) 1 250 4791300 - 4898729 85060 (C) 1
Alpha I SS All 85020 (B) 1 260 4898730 - 6225576 85020 (B) 1
IA, IB, IC 1684188 - 2065189 85030 (A) 1 260 4898730 - 6225576 85060 (C) 1
I, IA, IB, IC 1534570 - 2065189 85020 (B) 1 260 4898730 - 6225576 85030 (A) 1
IA, IB, IC 1749276 - 2065189 85060 (C) 1 470 4208730 - 6225576 85060 (C) 1
II 1474909 - 2671321 85030 (A) 1 470 4208730 - 6225576 85030 (A) 1
120/140 2062141 - 6225576 85030 (A) 1 470 4208730 - 6225576 85020 (B) 1
120/140 2062141 - 6225576 85060 (C) 1 485 4893835 - To Date 85030 (A) 1
120/140 2062141 - 6225576 85020 (B) 1 485 4893835 - To Date 85020 (B) 1
160/165 2065190 - To Date 85030 (A) 1 485 4893835 - To Date 85060 (C) 1
160/165 2065190 - To Date 85020 (B) 1 888 3106717 - To Date 85060 (C) 1
160/165 2065190 - To Date 85060 (C) 1 888 3106717 - To Date 85020 (B) 1
225 S 3856268 - 4200499 85050 (C) 1 888 3106717 - To Date 85030 (A) 1
225 S 3856268 - 4200499 85020 (B) 1 898/228 4782330 - 6225576 85020 (B) 1
225 S 3856268 - 4200499 85030 (A) 1 898/228 4782330 - 6225576 85030 (A) 1
233 4200500 - To Date 85020 (B) 1 898/228 4782330 - 6225576 85060 (C) 1
233 4200500 - To Date 85030 (A) 1
233 4200500 - To Date 85060 (C) 1
(A) Bearing Carrier Seal (B) Gear Chamber Seal (C) Lower Drive Shaft Seal

www.glmmarine.com
181
