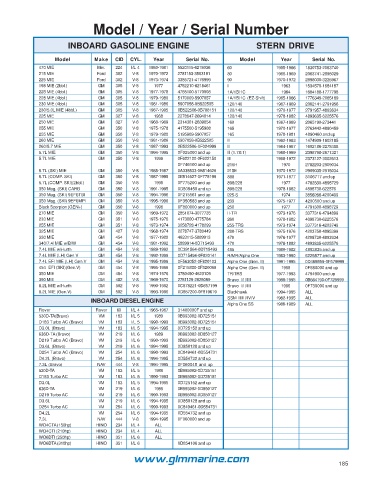

Model / Year / Serial Number

INBOARD GASOLINE ENGINE STERN DRIVE

Model Make CID CYL. Year Serial No. Model Year Serial No.
470 MIE Mer. 224 I/L 4 1980-1981 5520115-6218036 60 1965-1966 1830753-2063740
215 MIE Ford 302 V-8 1970-1972 2781153-3563181 80 1966-1969 2063741-2898029
225 MIE Ford 302 V-8 1973-1974 3385721-4176999 90 1970-1972 2898030-3225967
198 MIE (2bbl.) GM 305 V-8 1977 4762210-6218461 I 1963 1534570-1684187
228 MIE (4bbl.) GM 305 V-8 1977-1978 4765100-5170008 1A/1B/1C 1964 1684188-1777798
228 MIE (4bbl.) GM 305 V-8 1979-1980 5170009-5907057 1A/1B/1C (EZ-Shift) 1965-1966 1776349-2065189
230 MIE (4bbl.) GM 305 V-8 1981-1986 5907058-0B522505 120/140 1967-1969 2062141-2791956
230/5.0L MIE (4bbl.) GM 305 V-8 1987-1995 0B522506-0B788151 120/140 1970-1977 2791957-4893634
225 MIE GM 327 V-8 1968 2278647-2694014 120/140 1978-1982 4893635-6225576
250 MIE GM 327 V-8 1968-1969 2314301-2639854 160 1967-1969 2065190-273441
255 MIE GM 350 V-8 1975-1978 4175500-5195908 165 1970-1977 2763442-4890459
255 MIE GM 350 V-8 1979-1980 5195909-5907057 165 1978-1981 4890460 and up
260 MIE GM 350 V-8 1981-1986 5907058-0B522505 II 1962-1963 1474909-1602185
260/5.7 MIE GM 350 V-8 1987-1993 0B522506-0F024999 II 1964-1967 1602186-2278488
5.7L MIE GM 350 V-8 1994-1995 0F025000 and up II (1.78:1) 1968-1969 2398798-2671321
5.7L MIE GM 350 V-8 1996 0F622100-0F622150 III 1968-1972 2373127-3002613
0F746100 and up 215H 1970 2782203-2909034
5.7L (SKI) MIE GM 350 V-8 1985-1987 0A338533-0B514626 215E 1970-1972 2909035-2915034
5.7L (COMP. SKI) GM 350 V-8 1987-1995 0B514627-0F775199 888 1971-1977 3106717 and up
5.7L (COMP. SKI)(2bbl.) GM 350 V-8 1996 0F775200 and up 898/228 1977 4782330-4898729
350 Mag. (SKI) CARB GM 350 V-8 1991-1995 0D505450 and up 898/228 1978-1982 4898730-622576
350 Mag. (SKI) 9EFI)TBI GM 350 V-8 1994-1996 0F215561 and up 225-S 1974 3856268-4200499
350 Mag. (SKI) 9EFI)MPI GM 350 V-8 1995-1996 0F350583 and up 233 1975-1977 4200500 and up
Black Scorpion (GEN+) GM 350 V-8 1996 0F800000 and up 250 1977 4791300-4898729
270 MIE GM 350 V-8 1969-1972 2851074-3077735 II-TR 1973-1976 3377316-4794899
233 MIE GM 351 V-8 1975-1976 4173000-4775784 260 1978-1982 4898730-6225576
255 MIE GM 351 V-8 1973-1974 3258728-4178299 255-TRS 1973-1974 3377316-4203749
325 MIE GM 427 V-8 1968-1974 2278747-3780449 280-TRS 1975-1976 4203750-4895399
330 MIE GM 454 V-8 1977-1980 4623115-5889913 470 1976-1977 4208730-4893934
340/7.4l MIE w/B/W GM 454 V-8 1981-1992 5889914-0D715493 470 1978-1882 4893835-6225576
7.4L MIE w/Hurth GM 454 V-8 1989-1992 0C391564-0D715493 485 1980-1982 4893835 and up
7.4L MIE (LH) Gen.V GM 454 V-8 1992-1996 0D715494-0F820141 R/MR/Alpha One 1983-1990 6225577 and up
7.4L EFI MIE (LH) Gen.V GM 454 V-8 1995-1996 0F563052-0F820103 Alpha One (Gen. II) 1991-1995 0D469859-0F679999
454 EFI (SKI)(Gen.V) GM 454 V-8 1995-1996 0F215800-0F820099 Alpha One (Gen. II) 1996 0F680000 and up
350 MIE GM 454 V-8 1974-1976 3780450-4623109 TR/TRS 1977-1993 4794900 and up
390 MIE GM 482 V-8 1969-1970 2781129-2825059 Bravo I/II/III 1988-1995 0B664190-0F729999
8.2L MIE w/Hurth GM 502 V-8 1990-1992 0C878221-0D857199 Bravo I/II/III 1996 0F730000 and up
8.2L MIE (Gen.V) GM 502 V-8 1993-1996 0D857200-0F819619 Blackhawk 1994-1995 ALL
INBOARD DIESEL ENGINE SSM II/III/IV/V 1982-1995 ALL
Alpha One SS 1986-1989 ALL
Rover Rover 60 I/L 4 1965-1967 31400000F and up
530D-TA(Bravo) VM 183 I/L 5 1989 0B993002-0D725151
D183 Turbo AC (Bravo) VM 183 I/L 5 1990-1993 0B993002-0D725151
D3.0L (Bravo) VM 183 I/L 5 1994-1995 0D725152 and up
636D-TA (Bravo) VM 219 I/L 6 1989 0B993002-0D850127
D219 Turbo AC (Bravo) VM 219 I/L 6 1990-1993 0B993002-0D850127
D3.6L (Bravo) VM 219 I/L 6 1994-1995 0D850128 and up
D254 Turbo AC (Bravo) VM 254 I/L 6 1990-1993 0C849461-0D554731
D4.2L (Bravo) VM 254 I/L 6 1994-1995 0D554732 and up
7.3L (Bravo) NAV 444 V-8 1994-1995 0F060048 and up
530D-TA VM 183 I/L 5 1989 0B993002-0D725151
D183 Turbo AC VM 183 I/L 5 1990-1993 0B993002-0D725151
D3.0L VM 183 I/L 5 1994-1995 0D725152 and up
636D-TA VM 219 I/L 6 1989 0B993002-0D850127
D219 Turbo AC VM 219 I/L 6 1990-1993 0B993002-0D850127
D3.6L VM 219 I/L 6 1994-1995 0D850128 and up
D254 Turbo AC VM 254 I/L 6 1990-1993 0C849461-0D554731
D4.2L VM 254 I/L 6 1994-1995 0D554732 and up
7.3L NAV 444 V-8 1994-1995 0F060000 and up
WO4CTA (150hp) HINO 234 I/L 4 ALL
WO4CTI (210hp) HINO 234 I/L 4 ALL
WO6DTI (250hp) HINO 351 I/L 6 ALL
WO6DTA (310hp) HINO 351 I/L 6 0D854106 and up
