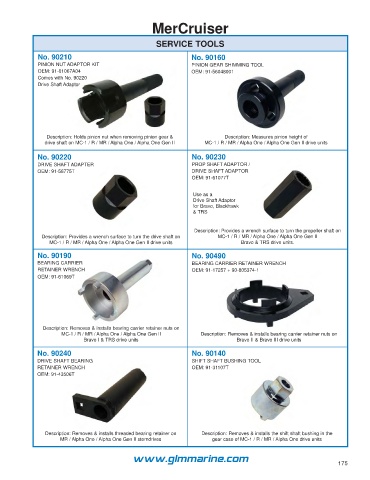

MerCruiser
SERVICE TOOLS
No. 90210 No. 90160
PINION NUT ADAPTOR KIT PINION GEAR SHIMMING TOOL
OEM: 91-61067A04 OEM: 91-56048001
Comes with No. 90220
Drive Shaft Adaptor
Description: Holds pinion nut when removing pinion gear & Description: Measures pinion height of
drive shaft on MC-1 / R / MR / Alpha One / Alpha One Gen II MC-1 / R / MR / Alpha One / Alpha One Gen II drive units
No. 90220 No. 90230
DRIVE SHAFT ADAPTER PROP SHAFT ADAPTOR /
OEM: 91-56775T DRIVE SHAFT ADAPTOR
OEM: 91-61077T
Use as a
Drive Shaft Adaptor
for Bravo, Blackhawk
& TRS
Description: Provides a wrench surface to turn the propeller shaft on
Description: Provides a wrench surface to turn the drive shaft on MC-1 / R / MR / Alpha One / Alpha One Gen II
MC-1 / R / MR / Alpha One / Alpha One Gen II drive units Bravo & TRS drive units.
No. 90190 No. 90490
BEARING CARRIER BEARING CARRIER RETAINER WRENCH
RETAINER WRENCH OEM: 91-17257 + 90-805374-1
OEM: 91-61069T
Description: Removes & installs bearing carrier retainer nuts on
MC-1 / R / MR / Alpha One / Alpha One Gen II Description: Removes & installs bearing carrier retainer nuts on
Bravo I & TRS drive units Bravo II & Bravo III drive units
No. 90240 No. 90140
DRIVE SHAFT BEARING SHIFT SHAFT BUSHING TOOL
RETAINER WRENCH OEM: 91-31107T
OEM: 91-43506T
Description: Removes & installs threaded bearing retainer on Description: Removes & installs the shift shaft bushing in the
MR / Alpha One / Alpha One Gen II sterndrives gear case of MC-1 / R / MR / Alpha One drive units
www.glmmarine.com
175
