MerCruiser

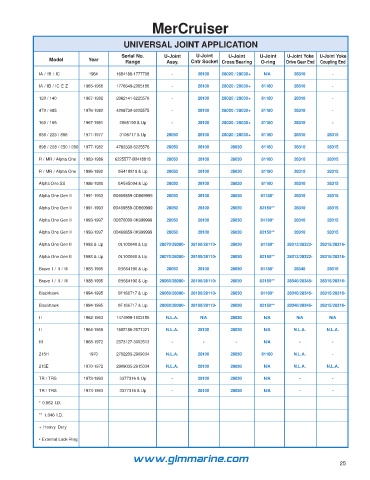

UNIVERSAL JOINT APPLICATION

Serial No. U-Joint U-Joint U-Joint U-Joint U-Joint Yoke U-Joint Yoke
Model Year Range Assy. Cntr Socket Cross/Bearing O-ring Drive Gear End Coupling End

IA / IB / IC 1964 1684188-1777798 - 28100 28020 / 28030+ N/A 28310 -
IA / IB / IC E Z 1965-1966 1776349-2065186 - 28100 28020 / 28030+ 81180 28310 -

120 / 140 1967-1982 2062141-6225576 - 28100 28020 / 28030+ 81180 28310 -
470 / 485 1976-1982 4208730-6225575 - 28100 28020 / 28030+ 81180 28310 -

160 / 165 1967-1981 2065190 & Up - 28100 28020 / 28030+ 81180 28310 -
888 / 225 / 888 1971-1977 3106717 & Up 28050 28100 28020 / 28030+ 81180 28310 28315

898 / 228 / 250 / 260 1977-1982 4782330-6225576 28050 28100 28030 81180 28310 28315
R / MR / Alpha One 1983-1986 6225577-0B418818 28050 28100 28030 81180 28310 28315

R / MR / Alpha One 1986-1990 0B418819 & Up 28050 28100 28030 81180 28310 28315
Alpha One SS 1986-1989 0A545004 & Up 28050 28100 28030 81180 28310 28315

Alpha One Gen II 1991-1993 0D469859-0D869999 28050 28100 28030 81180* 28310 28315
Alpha One Gen II 1991-1993 0D469859-0D869999 28050 28100 28030 82150** 28310 28315

Alpha One Gen II 1993-1997 0D870000-0K999999 28050 28100 28030 81180* 28310 28315
Alpha One Gen II 1993-1997 0D469859-0K999999 28050 28100 28030 82150** 28310 28315

Alpha One Gen II 1998 & Up 0L100040 & Up 28070/28080• 28100/28110• 28030 81180* 28312/28322• 28315/28316•
Alpha One Gen II 1998 & Up 0L100040 & Up 28070/28080• 28100/28110• 28030 82150** 28312/28322• 28315/28316•

Bravo I / II / III 1988-1995 0B664190 & Up 28050 28100 28030 81180* 28340 28315

Bravo I / II / III 1988-1995 0B664190 & Up 28060/28090• 28100/28110• 28030 82150** 28340/28345• 28315/28316•
Blackhawk 1994-1995 0F186717 & Up 28060/28090• 28100/28110• 28030 81180* 28340/28345• 28315/28316•
Blackhawk 1994-1995 0F186717 & Up 28060/28090• 28100/28110• 28030 82150** 28340/28345• 28315/28316•

II 1962-1963 1474909-1602185 N.L.A. N/A 28030 N/A N/A N/A

II 1964-1969 1602186-2671321 N.L.A. 28100 28030 N/A N.L.A. N.L.A.
III 1968-1972 2373127-3002613 - - - N/A - -
215H 1970 2782203-2909034 N.L.A. 28100 28030 81180 N.L.A. -

215E 1970-1972 2909035-2915034 N.L.A. 28100 28030 N/A N.L.A. N.L.A.

TR / TRS 1973-1993 3377316 & Up - 28100 28030 N/A - -
TR / TRS 1973-1993 3377316 & Up - 28100 28030 N/A - -

* 0.862 I.D.
** 1.046 I.D.

+ Heavy Duty
• External Lock-Ring
