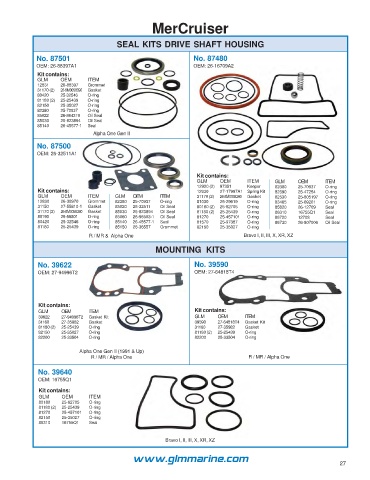

MerCruiser

SEAL KITS DRIVE SHAFT HOUSING

No. 87501 No. 87480
OEM: 26-88397A1 OEM: 26-16709A2
Kit contains:
GLM OEM ITEM
12831 26-88397 Grommet
31170 (2) 26-8M0058390 Gasket
80420 25-32546 O-ring
81180 (2) 25-25439 O-ring
82150 25-35027 O-ring
82380 25-70937 O-ring
85022 26-864319 Oil Seal
85030 26-823894 Oil Seal
85140 26-45577-1 Seal
Alpha One Gen II
No. 87500
OEM: 26-32511A1

Kit contains:
GLM OEM ITEM GLM OEM ITEM
12920 (2) 97351 Keeper 82380 25-70937 O-ring
Kit contains: 12930 27-17997A1 Spring Kit 82390 25-47254 O-ring
GLM OEM ITEM GLM OEM ITEM 31170 (2) 26-8M0058390 Gasket 82530 25-805197 O-ring
12830 26-38970 Grommet 82380 25-70937 O-ring 81030 25-29619 O-ring 83465 25-69201 O-ring
31150 27-55810-1 Gasket 85020 26-32511 Oil Seal 80180 (2) 25-62705 O-ring 85820 26-12709 Seal
31170 (2) 26-8M0058390 Gasket 85030 26-823894 Oil Seal 81180 (2) 25-25439 O-ring 86310 16755Q1 Seal
80190 25-55801 O-ring 85060 26-96503-1 Oil Seal 81270 25-457101 O-ring 86720 12708 Seal
80420 25-32546 O-ring 85140 26-45577-1 Seal 81570 25-97387 O-ring 86730 26-807006 Oil Seal
81180 25-25439 O-ring 85150 26-36557 Grommet 82150 25-35027 O-ring
R / MR & Alpha One Bravo I, II, III, X, XR, XZ
MOUNTING KITS

No. 39622 No. 39590
OEM: 27-94996T2 OEM: 27-64818T4

Kit contains:
GLM OEM ITEM Kit contains:
39622 27-94996T2 Gasket Kit GLM OEM ITEM
31160 27-35982 Gasket 39590 27-64818T4 Gasket Kit
81180 (2) 25-25439 O-ring 31160 27-35982 Gasket
82150 25-35027 O-ring 81180 (2) 25-25439 O-ring
82200 25-33504 O-ring 82200 25-33504 O-ring

Alpha One Gen II (1991 & Up)
R / MR / Alpha One R / MR / Alpha One

No. 39640
OEM: 16755Q1
Kit contains:
GLM OEM ITEM
80180 25-62705 O-ring
81180 (2) 25-25439 O-ring
81270 25-457101 O-ring
82150 25-35027 O-ring
86310 16755Q1 Seal

Bravo I, II, III, X, XR, XZ

www.glmmarine.com
27
