MerCruiser

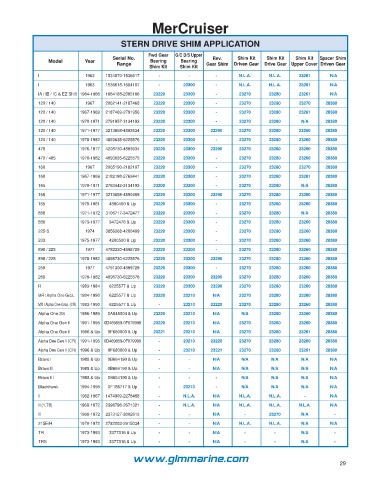

STERN DRIVE SHIM APPLICATION

Fwd Gear G/C D/S Upper
Serial No. Rev. Shim Kit Shim Kit Shim Kit Spacer Shim
Model Year Bearing Bearing
Range Gear Shim Driven Gear Drive Gear Upper Cover Driven Gear
Shim Kit Shim Kit
I 1963 1534570-1536617 - - - N.L.A. N.L.A. 23261 N/A
I 1963 1536618-1684187 - 23300 - N.L.A. N.L.A. 23261 N/A
IA / IB / IC & EZ Shift 1964-1966 1684188-2065186 23220 23300 - 23270 23280 23261 N/A
120 / 140 1967 2062141-2187468 23220 23300 - 23270 23280 23270 28380
120 / 140 1967-1969 2187469-2791956 23220 23300 - 23270 23280 23261 28380
120 / 140 1970-1971 2791957-3134193 23220 23300 - 23270 23280 N/A 28380
120 / 140 1971-1977 3213658-4893634 23220 23300 23290 23270 23280 23260 28380
120 / 140 1978-1982 4893635-6225576 23220 23300 - 23270 23280 23260 28380
470 1976-1977 4208730-4893934 23220 23300 23290 23270 23280 23260 28380
470 / 485 1978-1982 4893835-6225575 23220 23300 - 23270 23280 23260 28380
160 1967 2065190-2182197 23220 23300 - 23270 23280 23270 28380
160 1967-1969 2182198-2763441 23220 23300 - 23270 23280 23261 28380
165 1970-1971 2763442-3134193 23200 23300 - 23270 23280 N/A 28380
165 1971-1977 3213658-4890459 23220 23300 23290 23270 23280 23260 28380
165 1978-1981 4890460 & Up 23220 23300 - 23270 23280 23260 28380
888 1971-1972 3106717-3472477 23220 23300 - 23270 23280 N/A 28380
888 1973-1977 3472478 & Up 23220 23300 - 23270 23280 23260 28380
225-S 1974 3856268-4200499 23220 23300 - 23270 23280 23260 28380
233 1975-1977 4200500 & Up 23220 23300 - 23270 23280 23260 28380
898 / 228 1977 4782330-4898729 23220 23300 - 23270 23280 23260 28380
898 / 228 1978-1982 4898730-6225576 23220 23300 23290 23270 23280 23260 28380
250 1977 4791300-4899729 23220 23300 - 23270 23280 23260 28380
260 1978-1982 4898730-6225576 23220 23300 23290 23270 23280 23260 28380
R 1983-1984 6225577 & Up 23220 23300 23290 23270 23280 23260 28380
MR / Alpha One Grcs. 1984-1990 6225577 & Up 23220 23210 N/A 23270 23280 23260 28380
MR / Alpha One Grcs. (CR) 1983-1990 6225577 & Up - 23210 23220 23270 23280 23260 28380
Alpha One SS 1986-1989 0A545004 & Up 23220 23210 N/A N/A 23280 23260 28380
Alpha One Gen II 1991-1995 0D469859-0F679999 23220 23210 N/A 23270 23280 23260 28380
Alpha One Gen II 1996 & Up 0F680000 & Up 23221 23210 N/A 23270 23280 23261 28380
Alpha One Gen II (CR) 1991-1995 0D469859-0F679999 - 23210 23220 23270 23280 23260 28380
Alpha One Gen II (CR) 1996 & Up 0F680000 & Up - 23210 23221 23270 23280 23261 28380
Bravo I 1988 & Up 0B664190 & Up - - N/A N/A N/A N/A N/A
Bravo II 1988 & Up 0B664190 & Up - - N/A N/A N/A N/A N/A
Bravo III 1988 & Up 0B664190 & Up - - - N/A N/A N/A N/A
Blackhawk 1994-1995 0F186717 & Up - 23210 - N/A N/A N/A N/A
II 1962-1967 1474909-2278488 - N.L.A. N/A N.L.A. N.L.A. - N/A
II (1.78) 1968-1972 2398798-2671321 - N.L.A. N/A N.L.A. N.L.A. N.L.A. N/A
III 1968-1972 2373127-3002613 - - N/A - 23270 N/A -
215E/H 1970-1972 2782203-2915034 - - N/A N.L.A. N.L.A. N/A N/A
TR 1973-1993 3377316 & Up - - N/A - - N/A -
TRS 1973-1993 3377316 & Up - - N/A - - N/A -
