MerCruiser

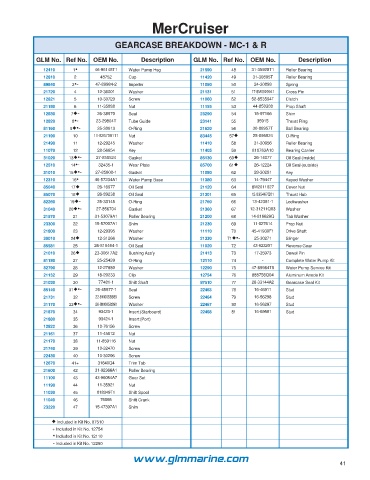

GEARCASE BREAKDOWN - MC-1 & R

GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
12410 1• 46-96148T1 Water Pump Hsg 21590 48 31-35928T1 Roller Bearing
12810 2 48752 Cup 11420 49 31-30895T Roller Bearing
89840 3•- 47-89984-2 Impeller 11050 50 24-30893 Spring
21720 4 12-36001 Washer 21131 51 17-8M0020941 Cross Pin
12821 5 10-30720 Screw 11060 52 52-853594T Clutch
21180 6 11-35888 Nut 11155 53 44-850308 Prop Shaft
12830 7- 26-38970 Seal 23290 54 15-97166 Shim
12820 8•- 23-29804T Tube Guide 23141 55 35915 Thrust Ring
81160 9•- 25-30613 O-Ring 21620 56 30-88957T Ball Bearing
21190 10 11-826709111 Nut 83445 57 25-896524 O-Ring
21490 11 12-29245 Washer 11410 58 31-30956 Roller Bearing
11070 12 28-56654 Key 11405 59 818763A10 Bearing Carrier
31020 13•- 27-858524 Gasket 85130 60 26-14077 Oil Seal (inside)
12510 14•- 32435-1 Wear Plate 85700 61 26-12224 Oil Seal (outside)
31010 15•- 27-85608-1 Gasket 11080 62 28-30281 Key
12310 16• 46-57234A1 Water Pump Base 11380 63 14-79447 Keyed Washer
85040 17 26-16977 Oil Seal 21120 64 8M2011027 Cover Nut
85070 18 26-89238 Oil Seal 21301 65 12-835467Q01 Thrust Hub
82260 19- 25-33145 O-Ring 21760 66 13-42351-1 Lockwasher
31040 20•- 27-856704 Gasket 21360 67 12-31211Q03 Washer
21570 21 31-53079A1 Roller Bearing 21200 68 14-816629Q Tab Washer
23300 22 15-57007A1 Shim 21230 69 11-827614 Prop Nut
21800 23 12-29395 Washer 11110 70 45-41939F1 Drive Shaft
30010 24 12-31266 Washer 21330 71•- 25-30271 Slinger
85581 25 26-816464-1 Oil Seal 11020 72 43-92320T Reverse Gear
21010 26 23-30617A2 Bushing Ass’y 21413 73 17-35973 Dowel Pin
81180 27 25-25439 O-Ring 12110 74 - Complete Water Pump Kit
32790 28 12-27880 Washer 12290 75 47-89984T5 Water Pump Service Kit
21132 29 18-20233 Clip 12754 76 888756Q04 Aluminum Anode Kit
21030 30 77481-1 Shift Shaft 87510 77 26-33144A2 Gearcase Seal Kit
85140 31•- 26-45577-1 Seal 22463 78 16-46911 Stud
21731 32 22-8M0058389 Screw 22464 79 16-56298 Stud
31170 33•- 26-8M0058390 Washer 22467 80 16-56297 Stud
21870 34 93423-1 Insert (Starboard) 22468 81 16-69501 Stud
21880 35 93424-1 Insert (Port)
12822 36 10-76156 Screw
21161 37 11-45812 Nut
21170 38 11-859116 Nut
21740 39 10-32470 Screw
22430 40 10-30206 Screw
12670 41+ 31640Q4 Trim Tab
21600 42 31-92366A1 Roller Bearing
11100 43 43-96084A7 Gear Set
11190 44 11-35921 Nut
11030 45 818349T1 Shift Spool
11040 46 76865 Shift Crank
23220 47 15-47397A1 Shim
 Included in Kit No. 87510
+ Included in Kit No. 12754
• Included in Kit No. 12110
- Included in Kit No. 12290

www.glmmarine.com
41
