MerCruiser

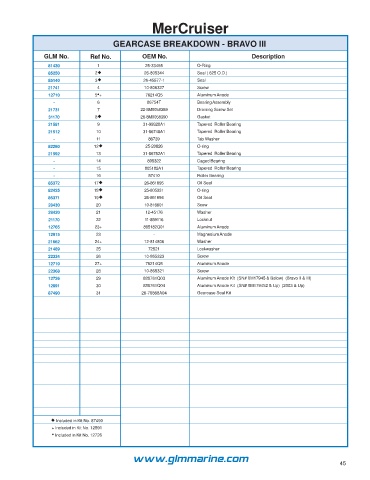

GEARCASE BREAKDOWN - BRAVO III

GLM No. Ref No. OEM No. Description
81430 1 25-33465 O-Ring
85250 2 26-805344 Seal (.625 O.D.)
85140 3 26-45577-1 Seal
21741 4 10-806327 Screw
12710 5•+ 76214Q5 Aluminum Anode
- 6 86754T Bearing Assembly
21731 7 22-8M0058389 Draining Screw Set
31170 8 26-8M0058390 Gasket
21581 9 31-99328A1 Tapered Roller Bearing
21512 10 31-86748A1 Tapered Roller Bearing
- 11 86739 Tab Washer
82280 12 25-20826 O-ring
21592 13 31-86752A1 Tapered Roller Bearing
- 14 805322 Caged Bearing
- 15 805182A1 Tapered Roller Bearing
- 16 57410 Roller Bearing
85372 17 26-861695 Oil Seal
82425 18 25-805331 O-ring
85371 19 26-861694 Oil Seal
28430 20 10-816601 Scew
28420 21 12-45176 Washer
21170 22 11-859116 Locknut
12765 23+ 865182Q01 Aluminum Anode
12915 23 - Magnesium Anode
21662 24+ 12-814806 Washer
21489 25 72521 Lockwasher
22334 26 10-865323 Screw
12710 27+ 76214Q5 Aluminum Anode
22368 28 10-865321 Screw
12726 29 888761Q03 Aluminum Anode Kit (SN# 0M17945 & Below) (Bravo II & III)
12891 30 888761Q04 Aluminum Anode Kit (SN# 0M179452 & Up) (2003 & Up)
87490 31 26-76868A04 Gearcase Seal Kit

 Included in Kit No. 87490
+ Included in Kit No. 12891
• Included in Kit No. 12726

www.glmmarine.com
45
