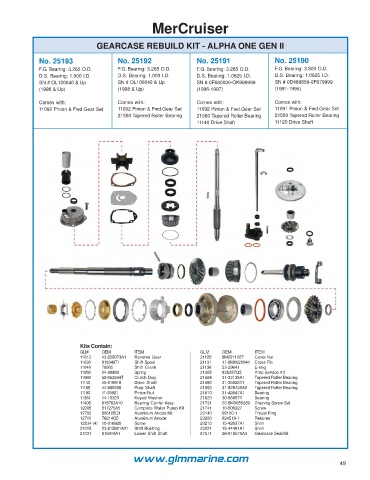

MerCruiser
GEARCASE REBUILD KIT - ALPHA ONE GEN II
No. 25193 No. 25192 No. 25191 No. 25190
F.G. Bearing: 3.265 O.D. F.G. Bearing: 3.265 O.D. F.G. Bearing: 3.265 O.D. F.G. Bearing: 3.500 O.D.
D.S. Bearing: 1.000 I.D. D.S. Bearing: 1.000 I.D. D.S. Bearing: 1.0625 I.D. D.S. Bearing: 1.0625 I.D.
SN # OL100040 & Up SN # OL100040 & Up SN # 0F680000-OK999999 SN # 0D469859-0F679999
(1998 & Up) (1998 & Up) (1996-1997) (1991-1995)
Comes with: Comes with: Comes with: Comes with:
11092 Pinion & Fwd.Gear Set 11092 Pinion & Fwd.Gear Set 11092 Pinion & Fwd.Gear Set 11091 Pinion & Fwd.Gear Set
21580 Tapered Roller Bearing 21580 Tapered Roller Bearing 21580 Tapered Roller Bearing
11140 Drive Shaft 11120 Drive Shaft
Kits Contain:
GLM OEM ITEM GLM OEM ITEM
11013 43-828073A1 Reverse Gear 21120 8M2011027 Cover Nut
11030 818349T1 Shift Spool 21131 17-8M0020941 Cross Pin
11040 76865 Shift Crank 21136 53-29641 E-ring
11050 24-30893 Spring 21305 835257Q5 Prop Service Kit
11060 52-853594T Clutch Dog 21584 31-33138A1 Tapered Roller Bearing
11140 45-816919 Drive Shaft 21590 31-35928T1 Tapered Roller Bearing
11155 44-850308 Prop Shaft 21593 31-828439A2 Tapered Roller Bearing
11190 11-35921 Pinion Nut 21610 31-42647A1 Bearing
11381 14-18323 Keyed Washer 21620 30-88957T Bearing
11405 818763A10 Bearing Carrier Assy. 21731 22-8M0058389 Draining Screw Set
12098 817275A5 Complete Water Pump Kit 21741 10-806327 Screw
12702 806105Q1 Aluminum Anode Kit 23140 68100-1 Thrust Ring
12710 76214Q5 Aluminum Anode 23200 824519-1 Retainer
12834 (4) 10-816928 Screw 23210 15-42637A1 Shim
21015 23-815921A21 Shift Bushing 23221 15-44491A1 Shim
21031 815919A1 Lower Shift Shaft 87511 26-816575A3 Gearcase Seal Kit
