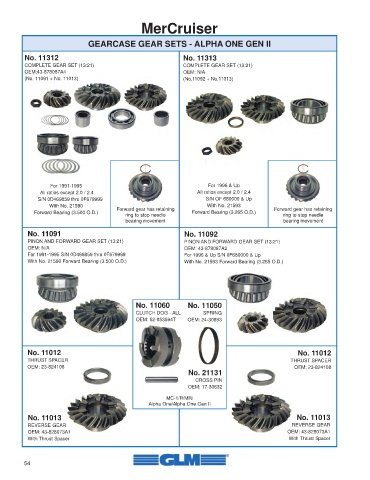

Page 54 - MerCruiser_Catalog_Flipbook

MerCruiser

GEARCASE GEAR SETS - ALPHA ONE GEN II

No. 11312 No. 11313
COMPLETE GEAR SET (13:21) COMPLETE GEAR SET (13:21)
OEM:43-878087A4 OEM: N/A
(No. 11091 + No. 11013) (No.11092 + No.11013)

For 1991-1995 For 1996 & Up
All ratios except 2.0 / 2.4 All ratios except 2.0 / 2.4
S/N 0D469859 thru 0F679999 S/N OF 680000 & Up
With No. 21590 With No. 21593
Forward Bearing (3.500 O.D.) Forward gear has retaining Forward Bearing (3.265 O.D.) Forward gear has retaining
ring to stop needle ring to stop needle
bearing movement bearing movement
No. 11091 No. 11092
PINON AND FORWARD GEAR SET (13:21) PINON AND FORWARD GEAR SET (13:21)
OEM: N/A OEM: 43-878087A2
For 1991-1995 S/N 0D469859 thru 0F679999 For 1996 & Up S/N 0F680000 & Up
With No. 21590 Forward Bearing (3.500 O.D.) With No. 21593 Forward Bearing (3.265 O.D.)

No. 11060 No. 11050
CLUTCH DOG - ALL SPRING
OEM: 52-853594T OEM: 24-30893

No. 11012 No. 11012
THRUST SPACER THRUST SPACER
OEM: 23-824108 OEM: 23-824108
No. 21131
CROSS PIN
OEM: 17-30632

MC-1/R/MR/
Alpha One/Alpha One Gen II
No. 11013 No. 11013
REVERSE GEAR REVERSE GEAR
OEM: 43-828073A1 OEM: 43-828073A1
With Thrust Spacer With Thrust Spacer

54
