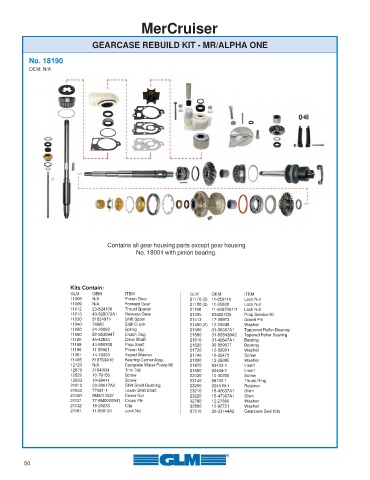

MerCruiser
GEARCASE REBUILD KIT - MR/ALPHA ONE
No. 18190
OEM: N/A
Contains all gear housing parts except gear housing
No. 18001 with pinion bearing.
Kits Contain:
GLM OEM ITEM GLM OEM ITEM
11008 N/A Pinion Gear 21170 (5) 11-859116 Lock Nut
11009 N/A Forward Gear 21180 (2) 11-35888 Lock Nut
11012 23-824108 Thrust Spacer 21190 11-826709111 Lock Nut
11013 43-828073A1 Reverse Gear 21305 835257Q5 Prop Service Kit
11030 818349T1 Shift Spool 21413 17-35973 Dowel Pin
11040 76865 Shift Crank 21490 (2) 12-29245 Washer
11050 24-30893 Spring 21580 31-36387A1 Tappered Roller Bearing
11060 52-853594T Clutch Dog 21590 31-828439A2 Tapered Roller Bearing
11120 45-42634 Drive Shaft 21610 31-42647A1 Bearing
11155 44-850308 Prop Shaft 21620 30-88957T Bearing
11190 11-35921 Pinion Nut 21720 12-36001 Washer
11381 14-18323 Keyed Washer 21740 10-32470 Screw
11405 818763A10 Bearing Carrier Assy. 21800 12-29395 Washer
12120 N/A Complete Water Pump Kit 21870 93423-1 Insert
12670 31640Q4 Trim Tab 21880 93424-1 Insert
12822 10-76156 Screw 22430 10-30206 Screw
12833 10-96411 Screw 23140 68100-1 Thrust Ring
21010 23-30617A2 Shift Shaft Bushing 23200 824519-1 Retainer
21030 77481-1 Lower Shift Shaft 23210 15-42637A1 Shim
21120 8M2011027 Cover Nut 23220 15-47397A1 Shim
21131 17-8M0020941 Cross Pin 32790 12-27880 Washer
21132 18-20233 Clip 32800 12-92721 Washer
21161 11-859124 Lock Nut 87510 26-33144A2 Gearcase Seal Kits
50
